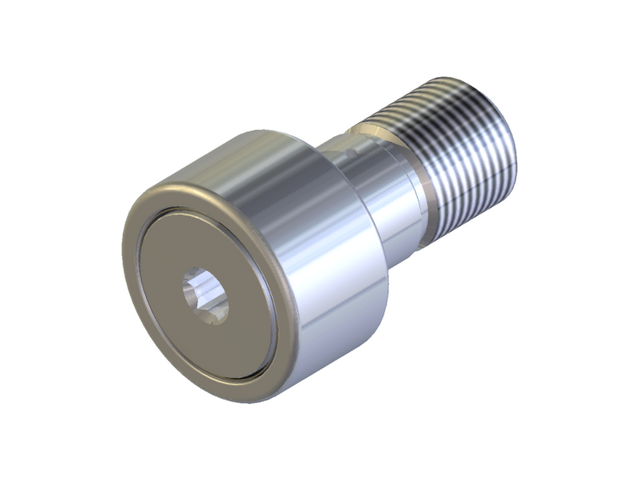

SCH-SB -Standard Stainless Heavy Duty Hexed Sealed Cam Follower

ID	Roller O.D.	Roller Width	Stud Diameter	Stud Length	M.E.T.	Thread Class 2A	Oil Hole Center	Oil Hole Diameter	Lube Fitting Size	Hex Size
	A	B	C	D	E	F	G	H	J	X
SCH-16-SB	0.500	0.375	0.250	0.625	1/4	1/4-28	~	~	~	1/8
SCH-20-SB	0.625	0.4375	0.313	0.750	5/16	5/16-24	~	~	~	1/8
SCH-22-SB	0.688	0.4375	0.313	0.750	5/16	5/16-24	~	~	~	1/8
SCH-24-SB	0.750	0.500	0.4375	0.875	3/8	7/16-20	1/4	3/32	3/16	3/16
SCH-28-SB	0.875	0.500	0.4375	0.875	3/8	7/16-20	1/4	3/32	3/16	3/16
SCH-32-SB	1.000	0.625	0.625	1.000	1/2	5/8-18	1/4	3/32	3/16	1/4
SCH-36-SB	1.125	0.625	0.625	1.000	1/2	5/8-18	1/4	3/32	3/16	1/4
SCH-40-SB	1.250	0.750	0.750	1.250	5/8	3/4-16	5/16	3/32	3/16	1/4
SCH-44-SB	1.375	0.750	0.750	1.250	5/8	3/4-16	5/16	3/32	3/16	1/4
SCH-48-SB	1.500	0.875	0.875	1.500	3/4	7/8-14	3/8	3/32	3/16	5/16
SCH-52-SB	1.625	0.875	0.875	1.500	3/4	7/8-14	3/8	3/32	3/16	5/16
SCH-56-SB	1.750	1.000	1.000	1.750	7/8	1-14	7/16	3/32	3/16	5/16
SCH-60-SB	1.875	1.000	1.000	1.750	7/8	1-14	7/16	3/32	3/16	5/16
SCH-64-SB	2.000	1.250	1.125	2.000	1	1 1/8-12	1/2	1/8	3/16	7/16
SCH-72-SB	2.250	1.250	1.125	2.000	1	1 1/8-12	1/2	1/8	3/16	7/16
SCH-80-SB	2.500	1.500	1.250	2.250	1 1/8	1 1/4-12	9/16	1/8	3/16	1/2
