SCH-48-SB

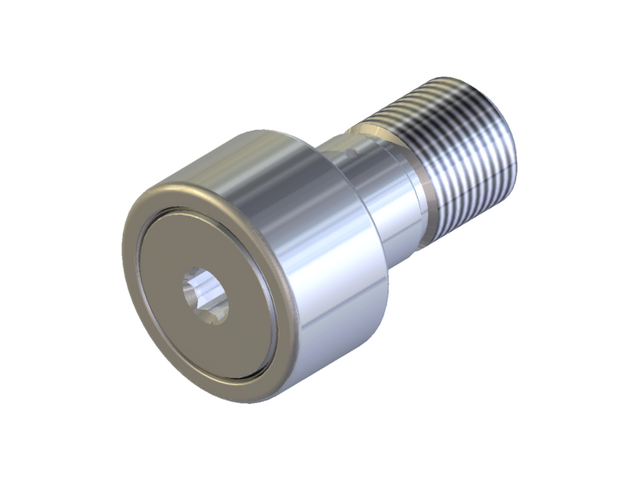

SCH-SB -Standard Stainless Heavy Duty Hexed Sealed Cam Follower

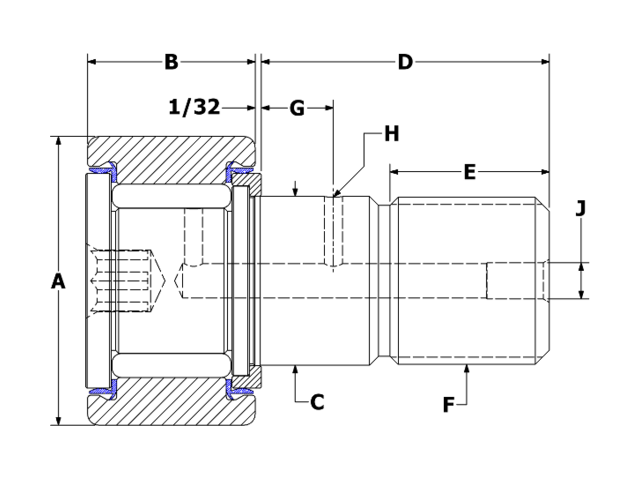

Specifications

ID SCH-48-SB
Roller O.D. A 1.500
Roller Width B 0.875
Stud Diameter C 0.875
Stud Length D 1.500
M.E.T. E 3/4
Thread Class 2A F 7/8-14
Oil Hole Center G 3/8
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 57/64
Mounting Bore Diameter (recommended) 0.875
**Recom. Torque Inch Pounds 520
Max Static Capacity (lbf) 7,896
Basic Dynamic Rating (lbf) 3,872
