SCH-36-SB

SCH-SB -Standard Stainless Heavy Duty Hexed Sealed Cam Follower

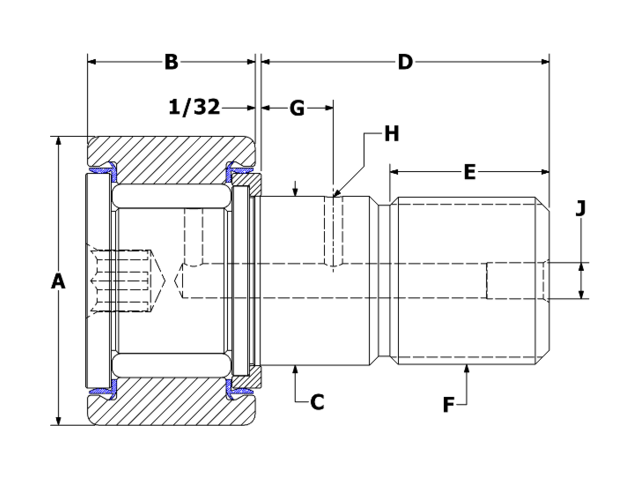

Specifications

ID SCH-36-SB
Roller O.D. A 1.125
Roller Width B 0.625
Stud Diameter C 0.625
Stud Length D 1.000
M.E.T. E 1/2
Thread Class 2A F 5/8-18
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 41/64
Mounting Bore Diameter (recommended) 0.625
**Recom. Torque Inch Pounds 200
Max Static Capacity (lbf) 4,284
Basic Dynamic Rating (lbf) 1,780

Downloads

SCH-36-SB STP File

SCH-36-SB IGES File

SCH-36-SB PDF File

3D View
