SCH-16-SB

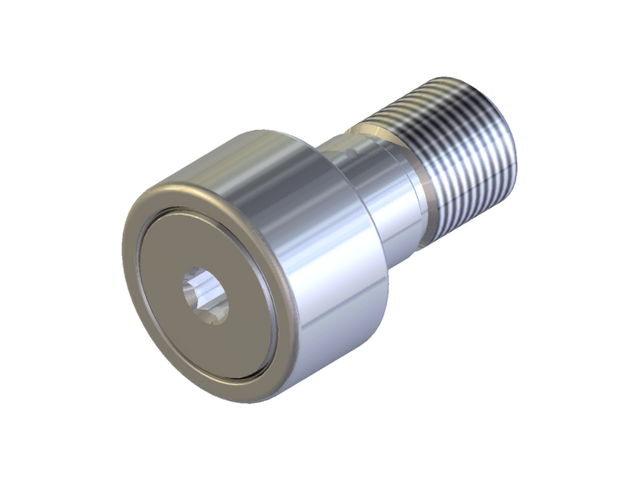

SCH-SB -Standard Stainless Heavy Duty Hexed Sealed Cam Follower

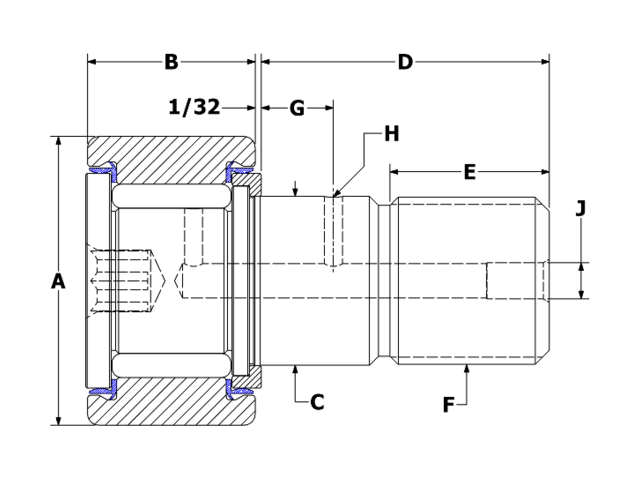

Specifications

ID SCH-16-SB
Roller O.D. A 0.500
Roller Width B 0.375
Stud Diameter C 0.250
Stud Length D 0.625
M.E.T. E 1/4
Thread Class 2A F 1/4-28
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J ~
Min. Boss Diameter 13/32
Mounting Bore Diameter (recommended) 0.250
**Recom. Torque Inch Pounds 12
Max Static Capacity (lbf) 1,106
Basic Dynamic Rating (lbf) 544
