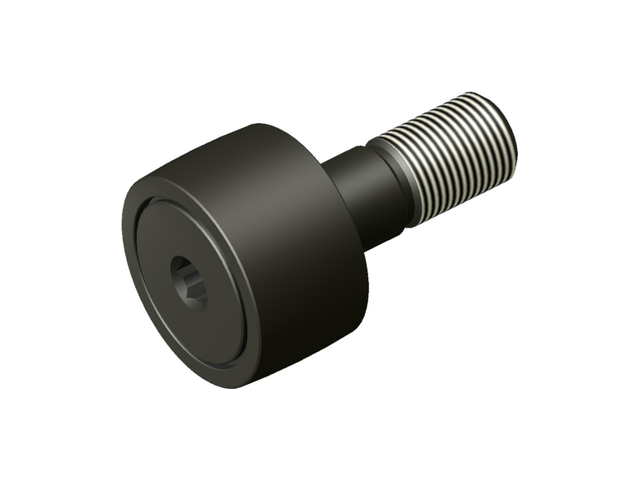

CSFH-A -Standard Neverlube Cam Follower Crowned

2D Drawings

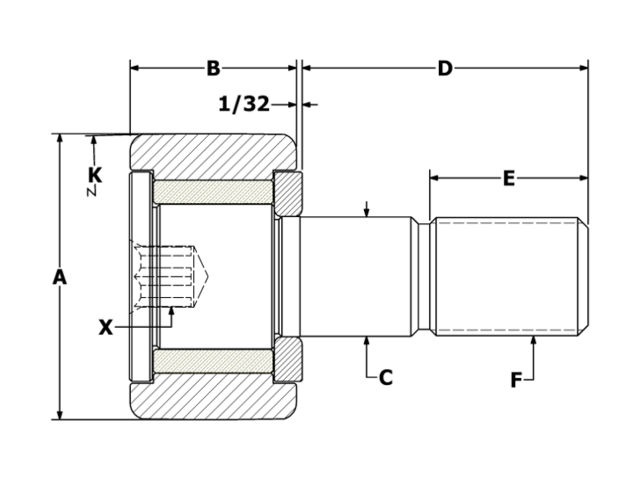

CSFH-44-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information


New* CSFH-44-A
Old CSFH-44-A
Roller O.D. A 1.375
Roller Width B 0.750
Crown Radius K 14
Stud Diameter C 0.500
Stud Length D 1.250
M.E.T. E 5/8
Thread Class 2A F 1/2-20
Hex Size X 1/4
Min. Boss Diameter 49/64
Mounting Bore 0.500
Torque (in-lb) 175
Load Factor 0.391

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
