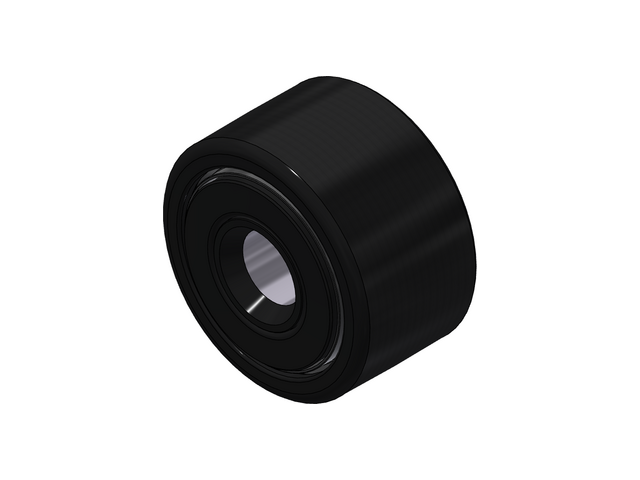

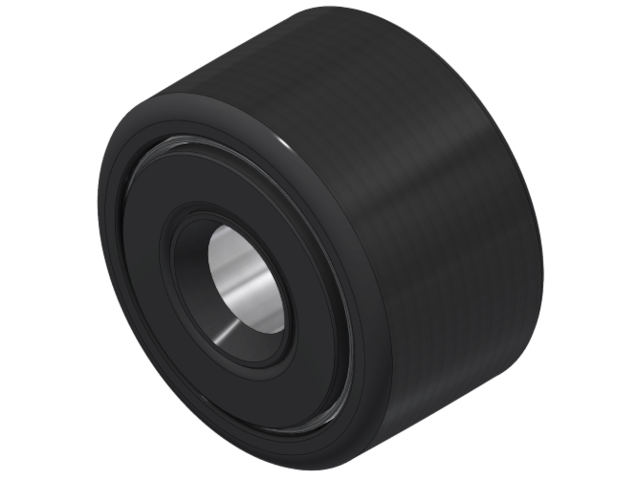

CYNB-S -Standard Crowned Sealed Yoke Roller

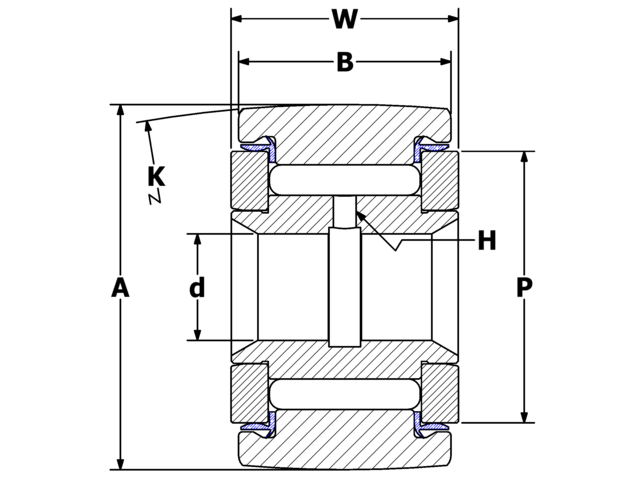

| SKU | Roller O.D. | Bore Diameter | Crown Radius | Min. Boss Diameter | Oil Hole Diameter | Overall Width | Roller Width |
|---|---|---|---|---|---|---|---|
| CYNB-24-S | 0.750 | 0.250 | 10 | 1/2 | 3/32 | 0.5625 | 0.500 |
| CYNB-28-S | 0.875 | 0.250 | 10 | 1/2 | 3/32 | 0.5625 | 0.500 |
| CYNB-32-S | 1.000 | 0.313 | 12 | 41/64 | 3/32 | 0.6875 | 0.625 |
| CYNB-36-S | 1.125 | 0.313 | 12 | 41/64 | 3/32 | 0.6875 | 0.625 |
| CYNB-40-S | 1.250 | 0.375 | 14 | 49/64 | 3/32 | 0.8125 | 0.750 |
| CYNB-44-S | 1.375 | 0.375 | 14 | 49/64 | 3/32 | 0.8125 | 0.750 |
| CYNB-48-S | 1.500 | 0.438 | 20 | 57/64 | 3/32 | 0.9375 | 0.875 |
| CYNB-52-S | 1.625 | 0.438 | 20 | 57/64 | 3/32 | 0.9375 | 0.875 |
| CYNB-56-S | 1.750 | 0.500 | 20 | 1 3/64 | 3/32 | 1.0625 | 1.000 |
| CYNB-60-S | 1.875 | 0.500 | 20 | 1 3/64 | 3/32 | 1.0625 | 1.000 |
| CYNB-64-S | 2.000 | 0.625 | 24 | 1 13/64 | 1/8 | 1.3125 | 1.250 |
| CYNB-72-S | 2.250 | 0.625 | 24 | 1 13/64 | 1/8 | 1.3125 | 1.250 |
| CYNB-80-S | 2.500 | 0.750 | 30 | 1 5/16 | 1/8 | 1.5625 | 1.500 |
| CYNB-88-S | 2.750 | 0.750 | 30 | 1 5/16 | 1/8 | 1.5625 | 1.500 |
| CYNB-96-S | 3.000 | 1.000 | 30 | 1 3/4 | 1/8 | 1.8125 | 1.750 |
| CYNB-104-S | 3.250 | 1.000 | 30 | 1 3/4 | 1/8 | 1.8125 | 1.750 |
| CYNB-112-S | 3.500 | 1.125 | 30 | 1 59/64 | 1/8 | 2.0625 | 2.000 |
| CYNB-128-S | 4.000 | 1.250 | 30 | 2 9/32 | 1/8 | 2.3125 | 2.250 |
| CYNB-160-S | 5.000 | 1.750 | 48 | 2 7/8 | 3/16 | 2.8750 | 2.750 |
| CYNB-192-S | 6.000 | 2.250 | 56 | 3 3/8 | 3/16 | 3.3750 | 3.250 |
| CYNB-224-S | 7.000 | 2.750 | 60 | 3 7/8 | 3/16 | 3.8750 | 3.750 |
| CYNB-256-S | 8.000 | 3.255 | 40 | 4 3/4 | 1/4 | 4.5000 | 4.250 |
| CYNB-288-S | 9.000 | 3.755 | 40 | 5 7/16 | 5/16 | 5.0000 | 4.750 |
| CYNB-320-S | 10.000 | 4.255 | 40 | 5 59/64 | 3/8 | 5.5000 | 5.250 |
