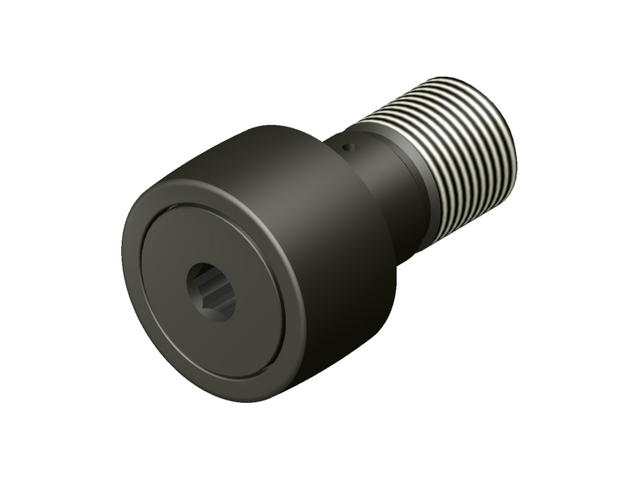

CCNBH-B -Standard Heavy Duty Crowned Hexed Unsealed Cam Follower
ID | Roller O.D. | Roller Width | Crown Radius | Stud Diameter | Stud Length |
---|---|---|---|---|---|
A | B | K | C | D | |
CCNBH-16-B | 0.500 | 0.375 | 7 | 0.250 | 0.625 |
CCNBH-20-B | 0.625 | 0.4375 | 7 | 0.313 | 0.750 |
CCNBH-22-B | 0.688 | 0.4375 | 8 | 0.313 | 0.750 |
CCNBH-24-B | 0.750 | 0.500 | 8 | 0.4375 | 0.875 |
CCNBH-28-B | 0.875 | 0.500 | 8 | 0.4375 | 0.875 |
CCNBH-32-B | 1.000 | 0.625 | 10 | 0.625 | 1.000 |
CCNBH-36-B | 1.125 | 0.625 | 10 | 0.625 | 1.000 |
CCNBH-40-B | 1.250 | 0.750 | 12 | 0.750 | 1.250 |
CCNBH-44-B | 1.375 | 0.750 | 12 | 0.750 | 1.250 |
CCNBH-48-B | 1.500 | 0.875 | 14 | 0.875 | 1.500 |
CCNBH-52-B | 1.625 | 0.875 | 14 | 0.875 | 1.500 |
CCNBH-56-B | 1.750 | 1.000 | 20 | 1.000 | 1.750 |
CCNBH-60-B | 1.875 | 1.000 | 20 | 1.000 | 1.750 |
CCNBH-64-B | 2.000 | 1.250 | 20 | 1.125 | 2.000 |
CCNBH-72-B | 2.250 | 1.250 | 20 | 1.125 | 2.000 |
CCNBH-80-B | 2.500 | 1.500 | 24 | 1.250 | 2.250 |
CCNBH-88-B | 2.750 | 1.500 | 24 | 1.250 | 2.250 |
CCNBH-96-B | 3.000 | 1.750 | 30 | 1.500 | 2.500 |
CCNBH-104-B | 3.250 | 1.750 | 30 | 1.500 | 2.500 |
CCNBH-112-B | 3.500 | 2.000 | 30 | 1.750 | 2.750 |
CCNBH-128-B | 4.000 | 2.250 | 30 | 2.000 | 3.500 |
CCNBH-160-B | 5.000 | 2.750 | 30 | 2.500 | 5.062 |
CCNBH-192-B | 6.000 | 3.250 | 30 | 3.000 | 6.000 |
CCNBH-224-B | 7.000 | 3.750 | 48 | 3.500 | 7.687 |
