MCNB-47-SB

MCNB-SB -Metric Crowned Hexed Sealed Cam Follower (All Size & Tolerance in Metric)

Please call 616-842-8760 for price and availability

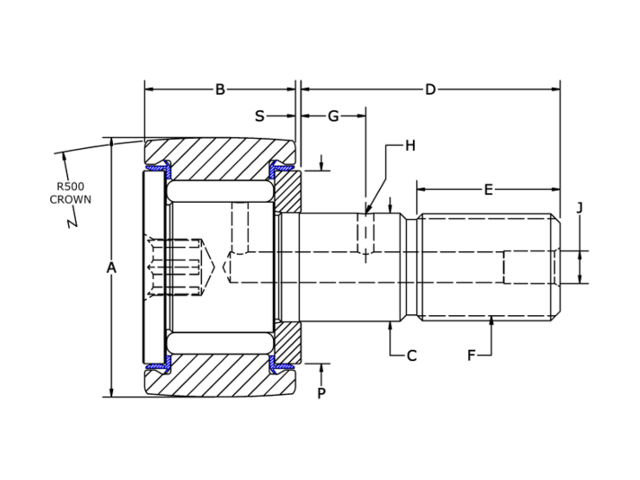

Specifications

ID MCNB-47-SB
Roller O.D. A 47
Roller Width B 24
Stud Diameter C 20
Stud Length D 40.5
M.E.T. E 21
Thread Class 6g F M20x1.50
Oil Hole Center G 9
Oil Hole Diameter H 4
Lube Fitting Size J 8
Endplate Diameter P 30
EndPlate Stickout S 0.8
Mounting Bore Diameter (recommended) 20
**Recom. Torque Nm 118
Basic Dynamic Rating (newtons) 25,690
Max Static Capacity (newtons) 46,700
