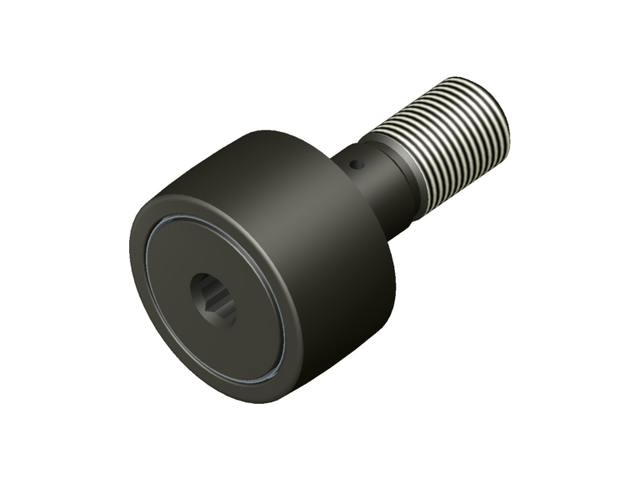

MCNB-SB -Metric Crowned Hexed Sealed Cam Follower (All Size & Tolerance in Metric)
| SKU | Roller O.D. | Endplate Diameter | Endplate Stickout | Hex Size | Lube Fitting Size | M.E.T. | Oil Hole Center | Oil Hole Diameter | Roller Width | Stud Diameter | Stud Length | Thread Class 6g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCNB-16-SB | 16 | 11 | 0.6 | 4 | - | 9 | - | - | 11 | 6 | 16 | M6x1.00 |
| MCNB-19-SB | 19 | 13 | 0.6 | 4 | - | 11 | - | - | 11 | 8 | 20 | M8x1.25 |
| MCNB-22-SB | 22 | 15 | 0.6 | 4 | 4 | 12 | - | - | 12 | 10 | 23 | M10x1.00 |
| MCNB-26-SB | 26 | 15 | 0.6 | 4 | 4 | 12 | - | - | 12 | 10 | 23 | M10x1.00 |
| MCNB-30-SB | 30 | 19 | 0.6 | 6 | 6 | 14 | 6 | 3 | 14 | 12 | 25 | M12x1.50 |
| MCNB-32-SB | 32 | 19 | 0.6 | 6 | 6 | 14 | 6 | 3 | 14 | 12 | 25 | M12x1.50 |
| MCNB-35-SB | 35 | 24 | 0.8 | 8 | 6 | 18 | 8 | 3 | 18 | 16 | 32.5 | M16x1.50 |
| MCNB-40-SB | 40 | 27 | 0.8 | 8 | 6 | 19 | 8 | 3 | 20 | 18 | 36.5 | M18x1.50 |
| MCNB-47-SB | 47 | 30 | 0.8 | 10 | 8 | 21 | 9 | 4 | 24 | 20 | 40.5 | M20x1.50 |
| MCNB-52-SB | 52 | 30 | 0.8 | 10 | 8 | 21 | 9 | 4 | 24 | 20 | 40.5 | M20x1.50 |
| MCNB-62-SB | 62 | 38 | 0.8 | 14 | 8 | 25 | 11 | 4 | 29 | 24 | 49.5 | M24x1.50 |
| MCNB-72-SB | 72 | 38 | 0.8 | 14 | 8 | 25 | 11 | 4 | 29 | 24 | 49.5 | M24x1.50 |
