MCNB-35-SB

MCNB-SB -Metric Crowned Hexed Sealed Cam Follower (All Size & Tolerance in Metric)

Please call 616-842-8760 for price and availability

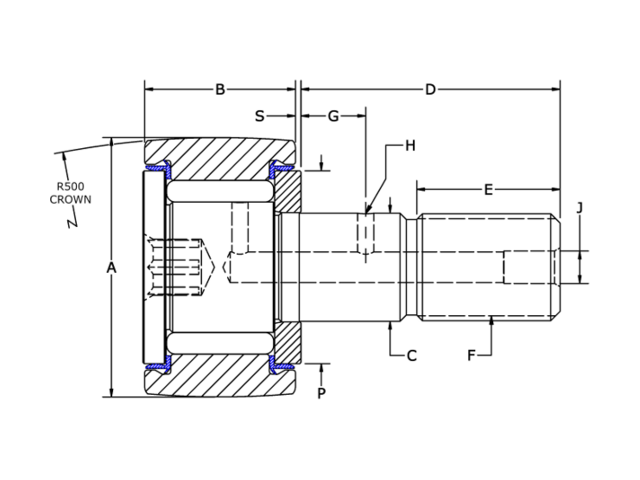

Specifications

ID MCNB-35-SB
Roller O.D. A 35
Roller Width B 18
Stud Diameter C 16
Stud Length D 32.5
M.E.T. E 18
Thread Class 6g F M16x1.50
Oil Hole Center G 8
Oil Hole Diameter H 3
Lube Fitting Size J 6
Endplate Diameter P 24
EndPlate Stickout S 0.8
Mounting Bore Diameter (recommended) 16
**Recom. Torque Nm 57
Basic Dynamic Rating (newtons) 16,970
Max Static Capacity (newtons) 28,500
