MCNB-30-SB

MCNB-SB -Metric Crowned Hexed Sealed Cam Follower (All Size & Tolerance in Metric)

Please call 616-842-8760 for price and availability

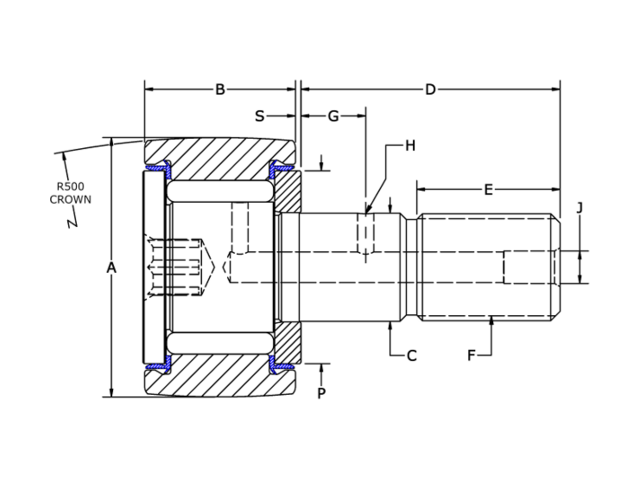

Specifications

ID MCNB-30-SB
Roller O.D. A 30
Roller Width B 14
Stud Diameter C 12
Stud Length D 25
M.E.T. E 14
Thread Class 6g F M12x1.50
Oil Hole Center G 6
Oil Hole Diameter H 3
Lube Fitting Size J 6
Endplate Diameter P 19
EndPlate Stickout S 0.6
Mounting Bore Diameter (recommended) 12
**Recom. Torque Nm 22
Basic Dynamic Rating (newtons) 11,080
Max Static Capacity (newtons) 15,300
