MCNB-16-SB

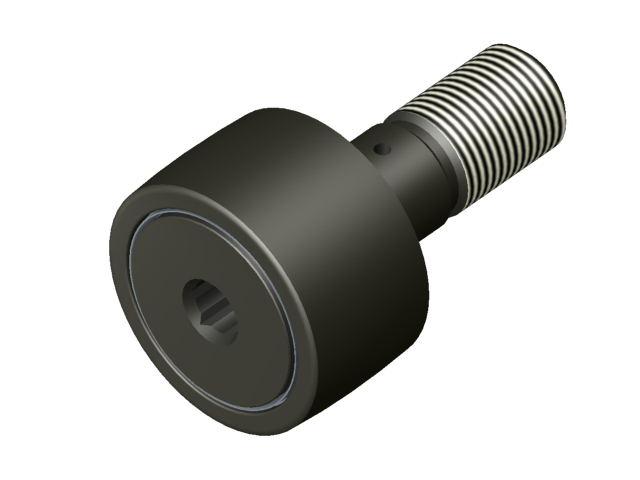

MCNB-SB -Metric Crowned Hexed Sealed Cam Follower (All Size & Tolerance in Metric)

Please call 616-842-8760 for price and availability

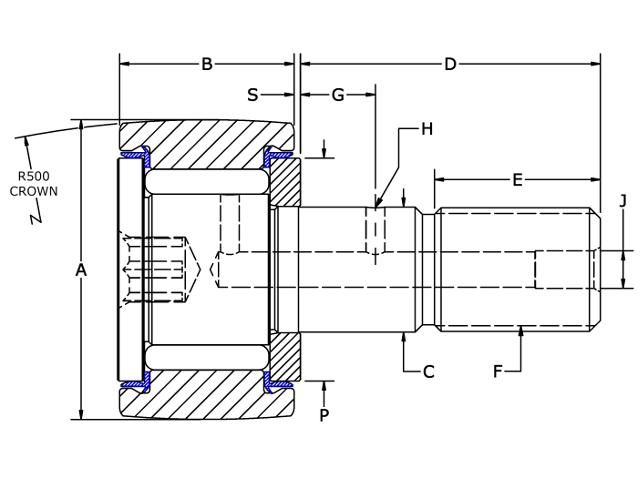

Specifications

ID MCNB-16-SB
Roller O.D. A 16
Roller Width B 11
Stud Diameter C 6
Stud Length D 16
M.E.T. E 9
Thread Class 6g F M6x1.00
Oil Hole Center G -
Oil Hole Diameter H -
Lube Fitting Size J -
Endplate Diameter P 11
EndPlate Stickout S 0.6
Mounting Bore Diameter (recommended) 6
**Recom. Torque Nm 3
Basic Dynamic Rating (newtons) 5,790
Max Static Capacity (newtons) 2,350
