CYDR-200-S

CYDR-S -Crowned Heavy Cylindrical Roller Bearings, Yoke Roller

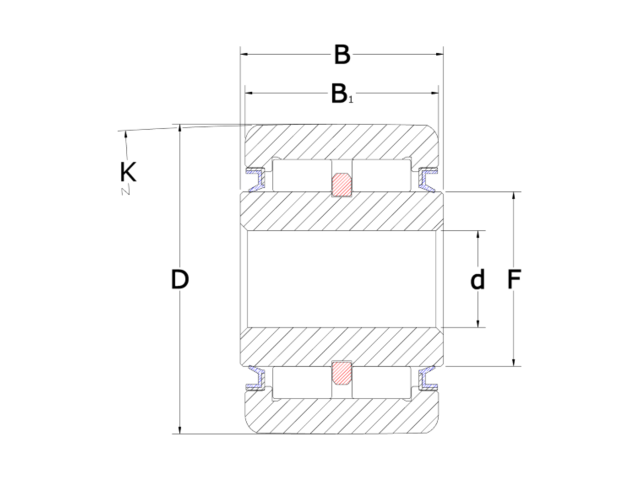

2D Drawings

CYDR-200-S 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID CYDR-200-S
Roller O.D. A 2.000
Roller Width B 1.250
Crown Radius K 24
Bore Diameter d 0.6250
Overall Width W 1.3125
Shoulder Diameter P 1 1/8
Mounting Shaft Diameter(Ø) Transition Fit 0.6245
Mounting Shaft Diameter(Ø) Press Fit 0.6255
Basic Dynamic Rating (lbf) 17,200
Max Static Capacity (lbf) 12,400
Limiting Speed (RPM) 4,100

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
