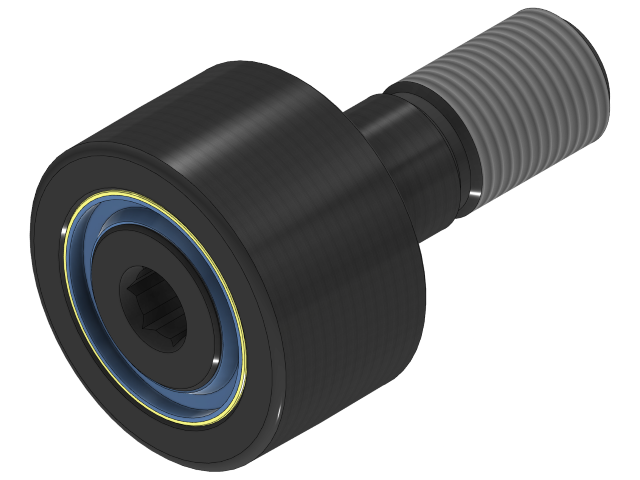

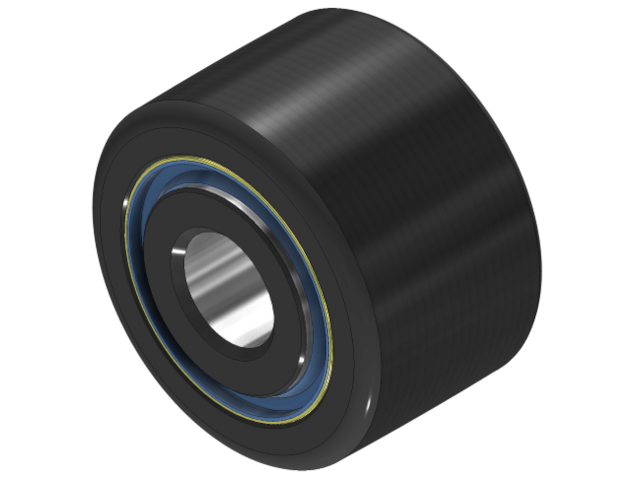

CYDR-S -Crowned Heavy Cylindrical Roller Bearings, Yoke Roller

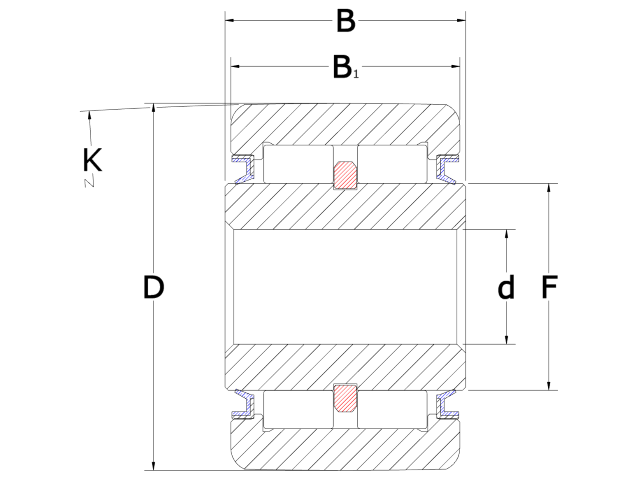

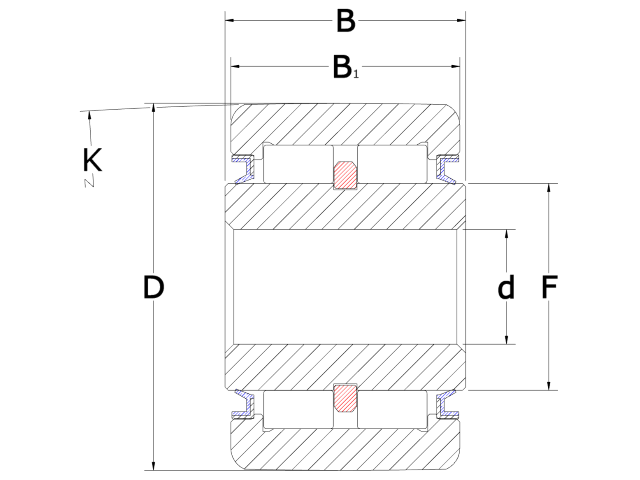

| SKU | Roller O.D. | Bore Diameter | Crown Radius | Overall Width | Roller Width | Shoulder Diameter |
|---|---|---|---|---|---|---|
| CYDR-150-S | 1.500 | 0.4375 | 20 | 0.9375 | 0.875 | 3/4 |
| CYDR-175-S | 1.750 | 0.5000 | 20 | 1.0625 | 1.000 | 1 |
| CYDR-200-S | 2.000 | 0.6250 | 24 | 1.3125 | 1.250 | 1 1/8 |
| CYDR-250-S | 2.500 | 0.7500 | 30 | 1.5625 | 1.500 | 1 1/4 |
| CYDR-400-S | 4.000 | 1.2500 | 30 | 2.3125 | 2.250 | 2 1/2 |
