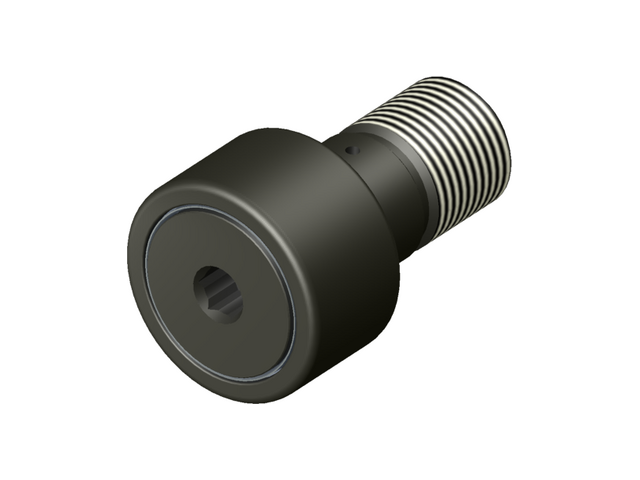

CNBH-22-SB

CNBH-SB -Standard Heavy Duty Hexed Sealed Cam Follower

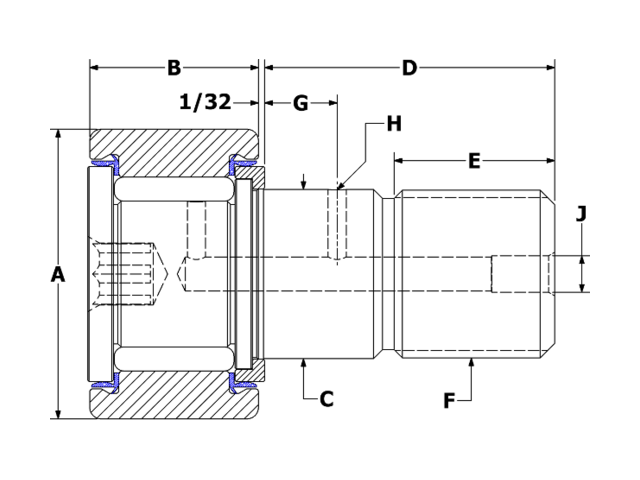

Specifications

ID CNBH-22-SB
Roller O.D. A 0.688
Roller Width B 0.4375
Stud Diameter C 0.313
Stud Length D 0.750
M.E.T. E 5/16
Thread Class 2A F 5/16-24
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J ~
Min. Boss Diameter 23/64
Mounting Bore Diameter (recommended) 0.313
**Recom. Torque Inch Pounds 90
Max Static Capacity (lbf) 2,480
Basic Dynamic Rating (lbf) 955
