CNBE-60

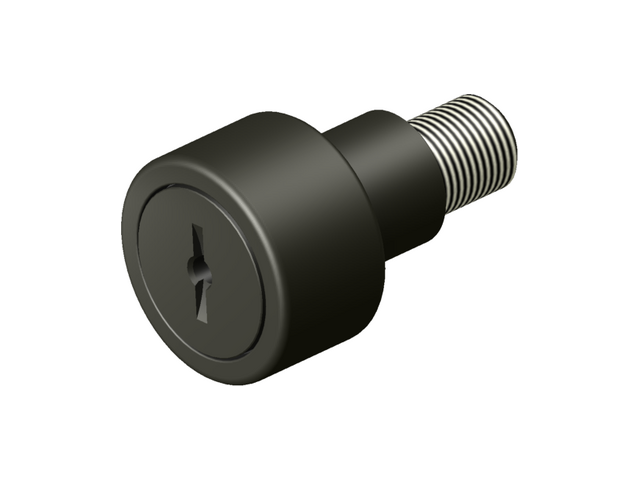

CNBE -Standard Slotted Eccentric Unsealed Cam Follower

Please call 616-842-8760 for price and availability

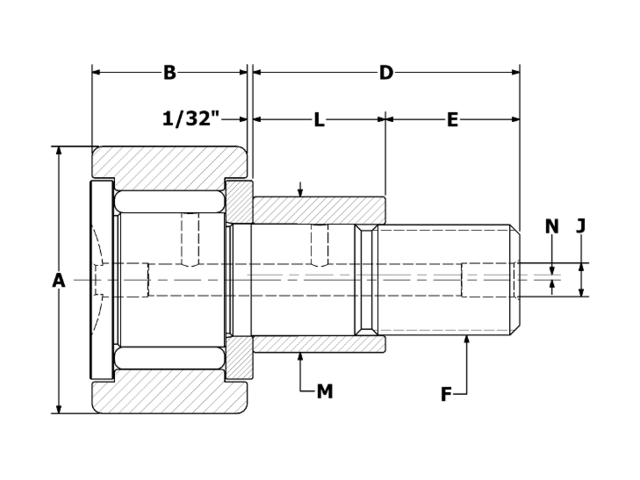

Specifications

ID CNBE-60
Roller O.D. A 1.875
Roller Width B 1.000
Stud Diameter C 0.750
Stud Length D 1.750
Thread Length E 7/8
Thread Class 2A F 3/4-16
Oil Hole Center G 7/16
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Bushing Length L 0.875
Bushing Diameter M 1.000
Eccentric offset N 0.030
Min. Boss Diameter 1 3/64
Mounting Bore Diameter (recommended) 1.003
**Recom. Torque Inch Pounds 1,250
Max Static Capacity (lbf) 7,920
Basic Dynamic Rating (lbf) 6,385
