CNBE-22

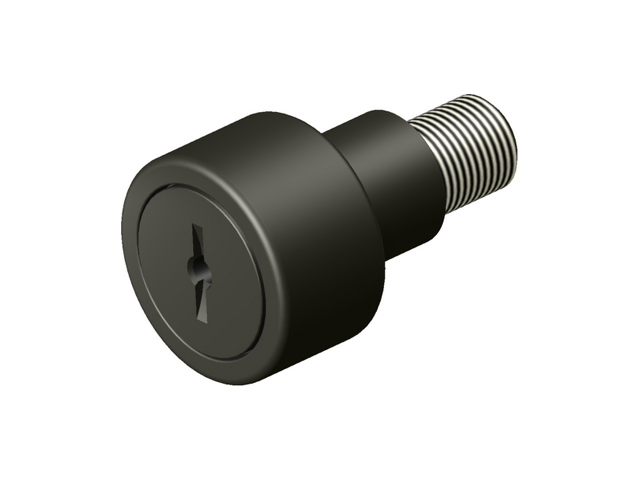

product photo ccnbe

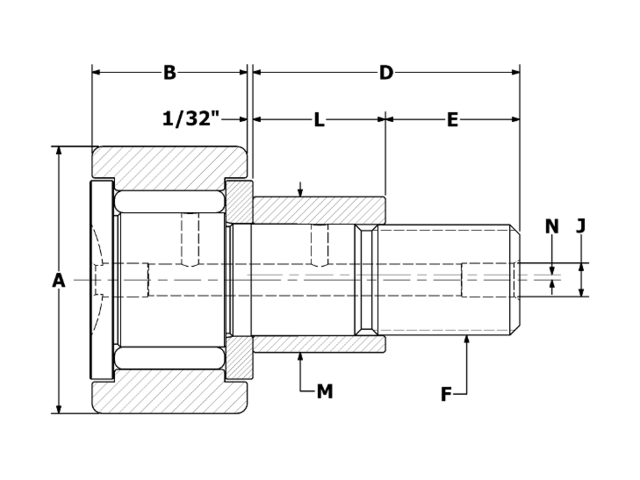

product diagram ccnbe

CNBE -Standard Slotted Eccentric Unsealed Cam Follower

$0.00

CNBE-22

Looks like the information for this item is currently unavailable online.

Please call our sales department at +1 (616) 842-8760 or send an email to [email protected] for more information.

Specifications

AttributeCalloutValue
Roller O.D. A 0.688 in
Roller Width B 0.4375 in
Stud Length D 0.750 in
M.E.T. E 5/16 in
Thread Class 2A F 1/4-28
Oil Hole Center G ~ in
Oil Hole Diameter H ~ in
Lube Fitting Size J 1/8 in
Bushing Length L 0.437 in
Bushing Diameter M 0.375 in
Eccentric Offset N 0.015 in
Approx Weight 0.070 lbs
Basic Dynamic Rating 955 lbf
Limiting Speed 8,300 RPM
Max Static Capacity 1,215 lbf
Min. Boss Diameter 23/64 in
Mounting Bore 0.378 in
Torque 17.5 in-lb

Custom Application

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!

Call 616.842.8760 and speak with one of our customer service reps for more information.
