CNBE-16-N

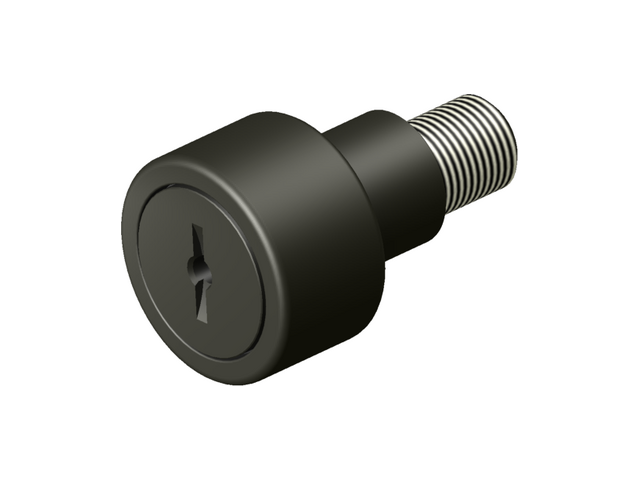

CNBE -Standard Slotted Eccentric Unsealed Cam Follower

Please call 616-842-8760 for price and availability

Specifications

ID CNBE-16-N
Roller O.D. A 0.500
Roller Width B 0.344
Stud Diameter C 0.190
Stud Length D 0.500
Thread Length E 1/4
Thread Class 2A F 10-32
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J 1/8
Bushing Length L 0.250
Bushing Diameter M 0.250
Eccentric offset N 0.010
Min. Boss Diameter 19/64
Mounting Bore Diameter (recommended) 0.253
**Recom. Torque Inch Pounds 15
Max Static Capacity (lbf) 720
Basic Dynamic Rating (lbf) 620
