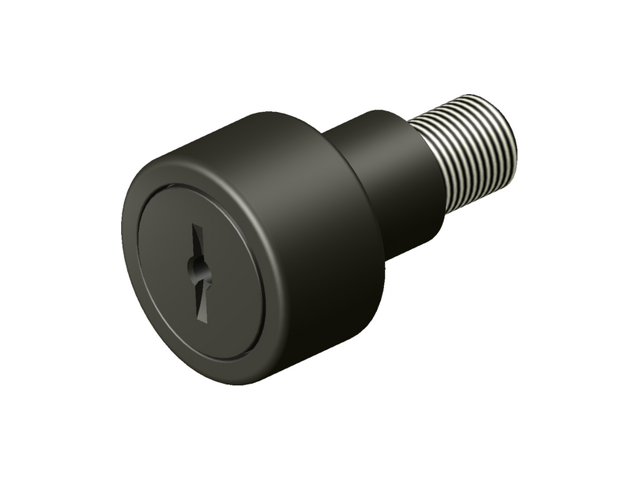

CNBE -Standard Slotted Eccentric Unsealed Cam Follower

PDF Download

CNBE-112 2D CAD Drawing


Roller O.D. A 3.500
Roller Width B 2.000
Stud Diameter C 1.375
Stud Length D 2.750
Thread Length E 1 3/8
Thread Class 2A F 1 3/8-12
Oil Hole Center G 11/16
Oil Hole Diameter H 1/8
Lube Fitting Size J 1/4
Bushing Length L 1.375
Bushing Diameter M 1.812
Eccentric offset N 0.060
Min. Boss Diameter 1 59/64
Mounting Bore Diameter (recommended) 1.815
**Recom. Torque Inch Pounds 2100
Max Static Capacity (lbf) 31,625
Basic Dynamic Rating (lbf) 22,800
Limiting Speed (RPM) 820

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
