CNB-32-S

CNB-S -Standard Slotted Sealed Cam Follower

Specifications

ID CNB-32-S

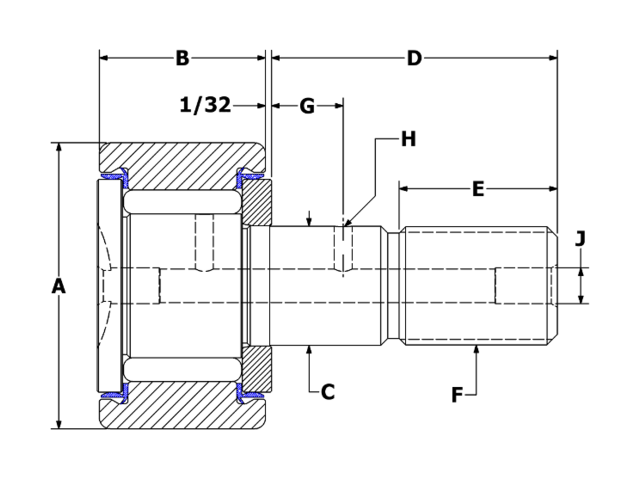

Roller O.D. A 1.000
Roller Width B 0.625
Stud Diameter C 0.4375
Stud Length D 1.000
M.E.T. E 1/2
Thread Class 2A F 7/16-20
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 41/64
Mounting Bore Diameter (recommended) 0.438
**Recom. Torque Inch Pounds 250
Max Static Capacity (lbf) 3,060
Basic Dynamic Rating (lbf) 2,225
