CNB-20-N

CNB - Standard Slotted Unsealed Cam Follower

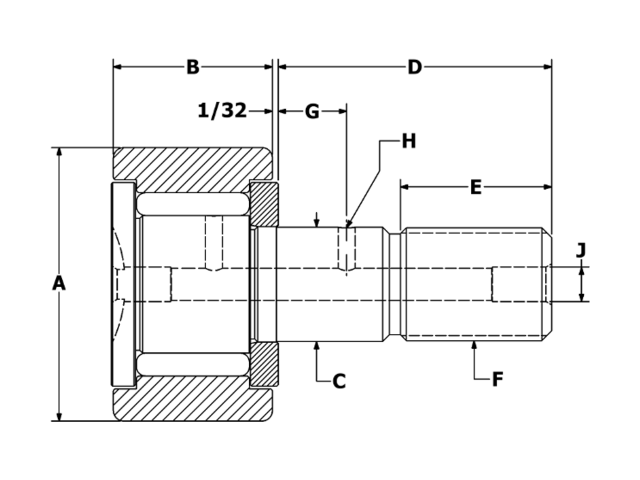

Specifications

ID CNB-20-N
Roller O.D. A 0.625
Roller Width B 0.406
Stud Diameter C 0.250
Stud Length D 0.625
M.E.T. E 5/16
Thread Class 2A F 1/4-28
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J 1/8
Min. Boss Diameter 23/64
Mounting Bore Diameter (recommended) 0.250
**Recom. Torque Inch Pounds 35
Max Static Capacity (lbf) 1,215
Basic Dynamic Rating (lbf) 995
