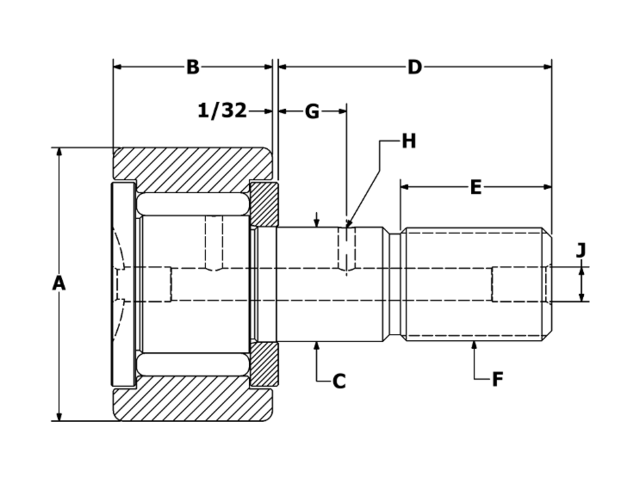

CNB - Standard Slotted Unsealed Cam Follower
| SKU | Roller O.D. | Lube Fitting Size | M.E.T. | Min. Boss Diameter | Oil Hole Center | Oil Hole Diameter | Roller Width | Stud Diameter | Stud Length | Thread Class 2A |
|---|---|---|---|---|---|---|---|---|---|---|
| CNB-16 | 0.500 | 1/8 | 1/4 | 19/64 | ~ | ~ | 0.375 | 0.190 | 0.625 | 10-32 |
| CNB-16-N | 0.500 | 1/8 | 1/4 | 19/64 | ~ | ~ | 0.344 | 0.190 | 0.500 | 10-32 |
| CNB-20 | 0.625 | 1/8 | 5/16 | 23/64 | ~ | ~ | 0.4375 | 0.250 | 0.750 | 1/4-28 |
| CNB-20-N | 0.625 | 1/8 | 5/16 | 23/64 | ~ | ~ | 0.406 | 0.250 | 0.625 | 1/4-28 |
| CNB-22 | 0.688 | 1/8 | 5/16 | 23/64 | ~ | ~ | 0.4375 | 0.250 | 0.750 | 1/4-28 |
| CNB-24 | 0.750 | 3/16 | 3/8 | 1/2 | 1/4 | 3/32 | 0.500 | 0.375 | 0.875 | 3/8-24 |
| CNB-28 | 0.875 | 3/16 | 3/8 | 1/2 | 1/4 | 3/32 | 0.500 | 0.375 | 0.875 | 3/8-24 |
| CNB-32 | 1.000 | 3/16 | 1/2 | 41/64 | 1/4 | 3/32 | 0.625 | 0.4375 | 1.000 | 7/16-20 |
| CNB-36 | 1.125 | 3/16 | 1/2 | 41/64 | 1/4 | 3/32 | 0.625 | 0.4375 | 1.000 | 7/16-20 |
| CNB-40 | 1.250 | 3/16 | 5/8 | 49/64 | 5/16 | 3/32 | 0.750 | 0.500 | 1.250 | 1/2-20 |
| CNB-44 | 1.375 | 3/16 | 5/8 | 49/64 | 5/16 | 3/32 | 0.750 | 0.500 | 1.250 | 1/2-20 |
| CNB-48 | 1.500 | 3/16 | 3/4 | 57/64 | 3/8 | 3/32 | 0.875 | 0.625 | 1.500 | 5/8-18 |
| CNB-52 | 1.625 | 3/16 | 3/4 | 57/64 | 3/8 | 3/32 | 0.875 | 0.625 | 1.500 | 5/8-18 |
| CNB-56 | 1.750 | 3/16 | 7/8 | 1 3/64 | 7/16 | 3/32 | 1.000 | 0.750 | 1.750 | 3/4-16 |
| CNB-60 | 1.875 | 3/16 | 7/8 | 1 3/64 | 7/16 | 3/32 | 1.000 | 0.750 | 1.750 | 3/4-16 |
| CNB-64 | 2.000 | 3/16 | 1 | 1 13/64 | 1/2 | 1/8 | 1.250 | 0.875 | 2.000 | 7/8-14 |
| CNB-72 | 2.250 | 3/16 | 1 | 1 13/64 | 1/2 | 1/8 | 1.250 | 0.875 | 2.000 | 7/8-14 |
| CNB-80 | 2.500 | 3/16 | 1 1/8 | 1 5/16 | 9/16 | 1/8 | 1.500 | 1.000 | 2.250 | 1-14 |
| CNB-88 | 2.750 | 3/16 | 1 1/8 | 1 5/16 | 9/16 | 1/8 | 1.500 | 1.000 | 2.250 | 1-14 |
| CNB-96 | 3.000 | 1/4 | 1 1/4 | 1 3/4 | 5/8 | 1/8 | 1.750 | 1.250 | 2.500 | 1 1/4-12 |
| CNB-104 | 3.250 | 1/4 | 1 1/4 | 1 3/4 | 5/8 | 1/8 | 1.750 | 1.250 | 2.500 | 1 1/4-12 |
| CNB-112 | 3.500 | 1/4 | 1 3/8 | 1 59/64 | 11/16 | 1/8 | 2.000 | 1.375 | 2.750 | 1 3/8-12 |
| CNB-128 | 4.000 | 1/4 | 1 1/2 | 2 9/32 | 3/4 | 1/8 | 2.250 | 1.500 | 3.500 | 1 1/2-12 |
