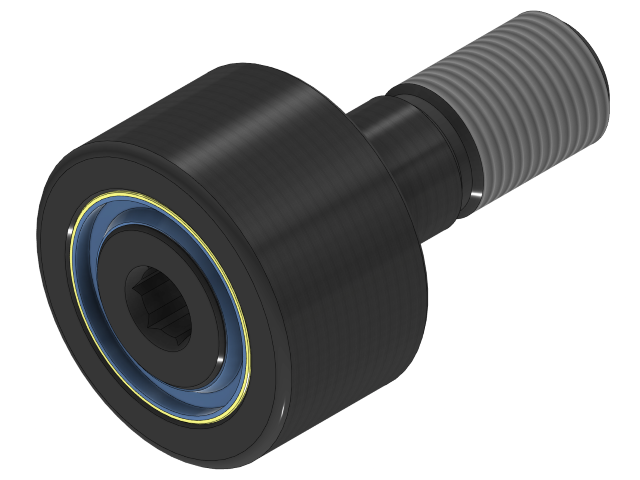

CDR-S -Heavy Cylindrical Roller Bearings, Cam Follower

2D Drawings

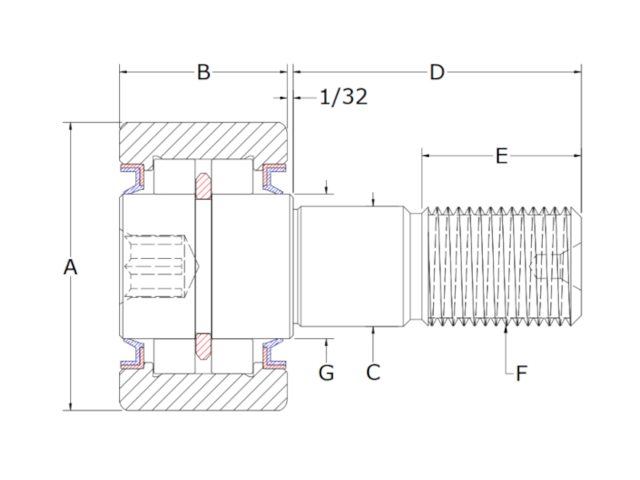

CDR-250-S 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information


ID CDR-250-S
Roller O.D. A 2.500
Roller Width B 1.500
Stud Diameter C 1.000
Stud Length D 2.250
M.E.T. E 1 1/8
Thread Class 2A F 1-14
Shoulder Diameter G 1-1/4
Hex Size X 1/2
Mounting Bore 1.000
Torque (in-lb) 1,300
Limiting Speed (RPM) 3,700
Basic Dynamic Rating (lbf) 16,800
Max Static Capacity (lbf) 22,800
Approx Weight [lbs] 2.48

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
