YDR-S -Heavy Cylindrical Roller Bearings, Yoke Roller
 |
 |

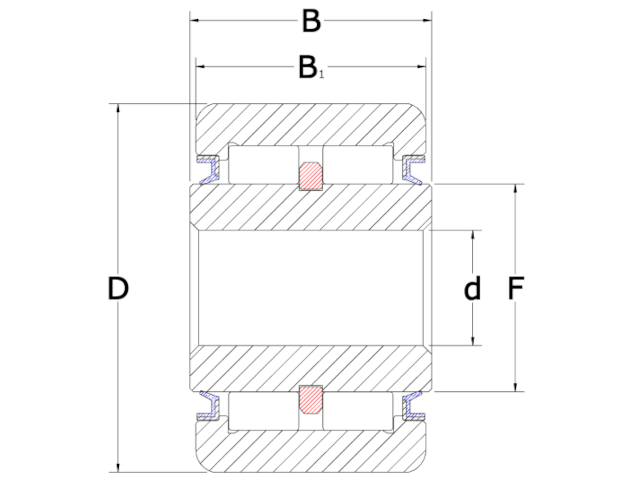

| ID | Roller O.D. | Roller Width | Bore Diameter | Overall Width | Shoulder Diameter |
|---|---|---|---|---|---|
| A | B | d | W | P | |
| YDR-150-S | 1.500 | 0.875 | 0.4375 | 0.9375 | 3/4 |
| YDR-175-S | 1.750 | 1.000 | 0.5000 | 1.0625 | 1 |
| YDR-200-S | 2.000 | 1.250 | 0.6250 | 1.3125 | 1 1/8 |
| YDR-250-S | 2.500 | 1.500 | 0.7500 | 1.5625 | 1 1/4 |
| YDR-400-S | 4.000 | 2.250 | 1.2500 | 2.3125 | 2 1/2 |
