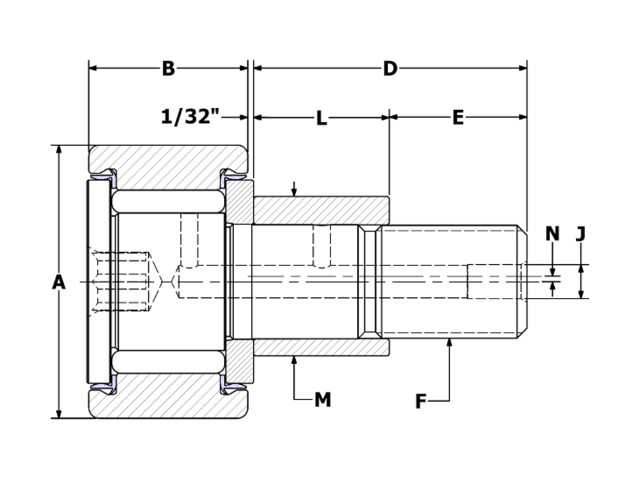

SCE-SB -Standard Stainless Hexed Eccentric Sealed Cam Follower

ID	Roller O.D.	Roller Width	Stud Length	Thread Length	Thread Class 2A	Oil Hole Center	Oil Hole Diameter	Lube Fitting Size	Bushing Length	Bushing Diameter
	A	B	D	E	F	G	H	J	L	M
SCE-16-SB	0.500	0.375	0.625	1/4	10-32	~	~	~	0.375	0.250
SCE-20-SB	0.625	0.4375	0.750	5/16	1/4-28	~	~	~	0.437	0.375
SCE-22-SB	0.688	0.4375	0.750	5/16	1/4-28	~	~	~	0.437	0.375
SCE-24-SB	0.750	0.500	0.875	3/8	3/8-24	1/4	3/32	3/16	0.500	0.500
SCE-28-SB	0.875	0.500	0.875	3/8	3/8-24	1/4	3/32	3/16	0.500	0.500
SCE-32-SB	1.000	0.625	1.000	1/2	7/16-20	1/4	3/32	3/16	0.500	0.625
SCE-36-SB	1.125	0.625	1.000	1/2	7/16-20	1/4	3/32	3/16	0.500	0.625
SCE-40-SB	1.250	0.750	1.250	5/8	1/2-20	5/16	3/32	3/16	0.625	0.687
SCE-44-SB	1.375	0.750	1.250	5/8	1/2-20	5/16	3/32	3/16	0.625	0.687
SCE-48-SB	1.500	0.875	1.500	3/4	5/8-18	3/8	3/32	3/16	0.750	0.875
SCE-52-SB	1.625	0.875	1.500	3/4	5/8-18	3/8	3/32	3/16	0.750	0.875
SCE-56-SB	1.750	1.000	1.750	7/8	3/4-16	7/16	3/32	3/16	0.875	1.000
SCE-60-SB	1.875	1.000	1.750	7/8	3/4-16	7/16	3/32	3/16	0.875	1.000
SCE-64-SB	2.000	1.250	2.000	1	7/8-14	1/2	1/8	3/16	1.000	1.187
SCE-72-SB	2.250	1.250	2.000	1	7/8-14	1/2	1/8	3/16	1.000	1.187
SCE-80-SB	2.500	1.500	2.250	1 1/8	1-14	9/16	1/8	3/16	1.125	1.375
