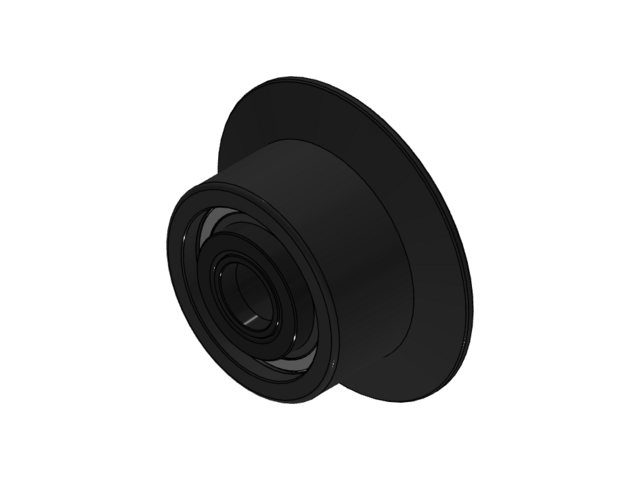

FHRY-A -Flanged Yoke High Roller
ID | Roller O.D. | Roller Width | Flange Diameter | Flange Width | Bore Diameter |
---|---|---|---|---|---|
A | B | I | T | d | |
FHRY-150-A | 1.500 | 0.872 | 2 3/16 | 0.218 | 0.437 |
FHRY-175-A | 1.750 | 1.000 | 2 7/16 | 0.250 | 0.500 |
FHRY-200-A | 2.000 | 1.250 | 2 11/16 | 0.312 | 0.625 |
FHRY-225-A | 2.250 | 1.250 | 2 15/16 | 0.312 | 0.625 |
FHRY-250-A | 2.500 | 1.500 | 3 3/16 | 0.500 | 0.750 |
FHRY-300-A | 3.000 | 1.750 | 3 15/16 | 0.590 | 1.000 |
FHRY-325-A | 3.250 | 1.750 | 4 3/16 | 0.590 | 1.000 |
FHRY-350-A | 3.500 | 2.000 | 4 7/16 | 0.590 | 1.125 |
FHRY-400-A | 4.000 | 2.250 | 4 15/16 | 0.590 | 1.250 |
FHRY-500-A | 5.000 | 2.750 | 5 15/16 | 0.720 | 1.750 |
FHRY-600-A | 6.000 | 3.250 | 6 15/16 | 0.720 | 2.250 |
FHRY-700-A | 7.000 | 3.750 | 7 15/16 | 0.720 | 2.750 |
FHRY-800-A | 8.000 | 4.250 | 8 15/16 | 0.720 | 3.255 |
FHRY-900-A | 9.000 | 4.750 | 9 15/16 | 0.720 | 3.755 |
FHRY-1000-A | 10.000 | 5.250 | 10 15/16 | 0.720 | 4.255 |
