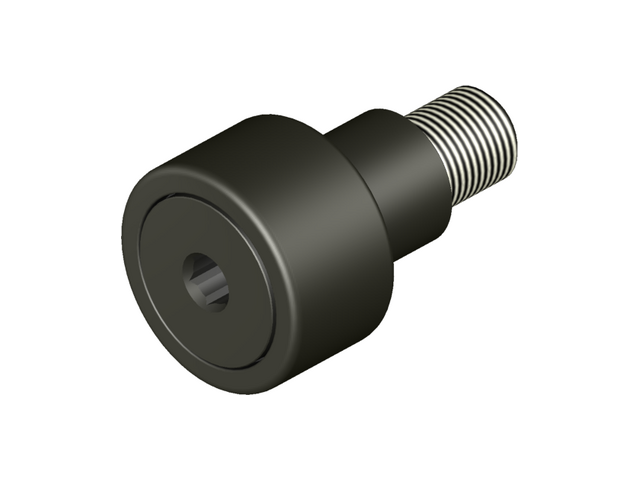

CNBE-B -Standard Hexed Eccentric Unsealed Cam Follower

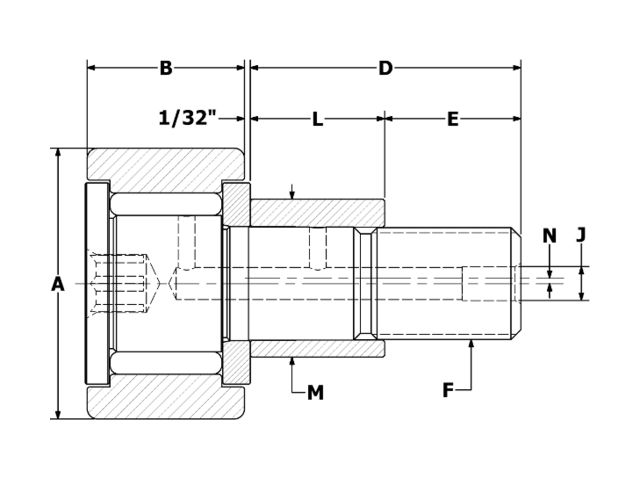

| SKU | Roller O.D. | Bushing Diameter | Bushing Length | Eccentric Offset | Hex Size | Lube Fitting Size | M.E.T. | Min. Boss Diameter | Oil Hole Center | Oil Hole Diameter | Roller Width | Stud Length | Thread Class 2A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CNBE-16-NB | 0.500 | 0.250 | 0.250 | 0.010 | 1/8 | ~ | 1/4 | 19/64 | ~ | ~ | 0.344 | 0.500 | 10-32 |
| CNBE-16-B | 0.500 | 0.250 | 0.375 | 0.010 | 1/8 | ~ | 1/4 | 19/64 | ~ | ~ | 0.375 | 0.625 | 10-32 |
| CNBE-20-NB | 0.625 | 0.375 | 0.313 | 0.015 | 1/8 | ~ | 5/16 | 23/64 | ~ | ~ | 0.406 | 0.625 | 1/4-28 |
| CNBE-20-B | 0.625 | 0.375 | 0.437 | 0.015 | 1/8 | ~ | 5/16 | 23/64 | ~ | ~ | 0.4375 | 0.750 | 1/4-28 |
| CNBE-22-B | 0.688 | 0.375 | 0.437 | 0.015 | 1/8 | ~ | 5/16 | 23/64 | ~ | ~ | 0.4375 | 0.750 | 1/4-28 |
| CNBE-24-B | 0.750 | 0.500 | 0.500 | 0.015 | 3/16 | 3/16 | 3/8 | 1/2 | 1/4 | 3/32 | 0.500 | 0.875 | 3/8-24 |
| CNBE-28-B | 0.875 | 0.500 | 0.500 | 0.015 | 3/16 | 3/16 | 3/8 | 1/2 | 1/4 | 3/32 | 0.500 | 0.875 | 3/8-24 |
| CNBE-32-B | 1.000 | 0.625 | 0.500 | 0.030 | 1/4 | 3/16 | 1/2 | 41/64 | 1/4 | 3/32 | 0.625 | 1.000 | 7/16-20 |
| CNBE-36-B | 1.125 | 0.625 | 0.500 | 0.030 | 1/4 | 3/16 | 1/2 | 41/64 | 1/4 | 3/32 | 0.625 | 1.000 | 7/16-20 |
| CNBE-40-B | 1.250 | 0.687 | 0.625 | 0.030 | 1/4 | 3/16 | 5/8 | 49/64 | 5/16 | 3/32 | 0.750 | 1.250 | 1/2-20 |
| CNBE-44-B | 1.375 | 0.687 | 0.625 | 0.030 | 1/4 | 3/16 | 5/8 | 49/64 | 5/16 | 3/32 | 0.750 | 1.250 | 1/2-20 |
| CNBE-48-B | 1.500 | 0.875 | 0.750 | 0.030 | 5/16 | 3/16 | 3/4 | 57/64 | 3/8 | 3/32 | 0.875 | 1.500 | 5/8-18 |
| CNBE-52-B | 1.625 | 0.875 | 0.750 | 0.030 | 5/16 | 3/16 | 3/4 | 57/64 | 3/8 | 3/32 | 0.875 | 1.500 | 5/8-18 |
| CNBE-56-B | 1.750 | 1.000 | 0.875 | 0.030 | 5/16 | 3/16 | 7/8 | 1 3/64 | 7/16 | 3/32 | 1.000 | 1.750 | 3/4-16 |
| CNBE-60-B | 1.875 | 1.000 | 0.875 | 0.030 | 5/16 | 3/16 | 7/8 | 1 3/64 | 7/16 | 3/32 | 1.000 | 1.750 | 3/4-16 |
| CNBE-64-B | 2.000 | 1.187 | 1.000 | 0.030 | 7/16 | 3/16 | 1 | 1 13/64 | 1/2 | 1/8 | 1.250 | 2.000 | 7/8-14 |
| CNBE-72-B | 2.250 | 1.187 | 1.000 | 0.030 | 7/16 | 3/16 | 1 | 1 13/64 | 1/2 | 1/8 | 1.250 | 2.000 | 7/8-14 |
| CNBE-80-B | 2.500 | 1.375 | 1.125 | 0.030 | 1/2 | 3/16 | 1 1/8 | 1 5/16 | 9/16 | 1/8 | 1.500 | 2.250 | 1-14 |
| CNBE-88-B | 2.750 | 1.375 | 1.125 | 0.030 | 1/2 | 3/16 | 1 1/8 | 1 5/16 | 9/16 | 1/8 | 1.500 | 2.250 | 1-14 |
| CNBE-96-B | 3.000 | 1.750 | 1.250 | 0.060 | 3/4 | 1/4 | 1 1/4 | 1 3/4 | 5/8 | 1/8 | 1.750 | 2.500 | 1 1/4-12 |
| CNBE-104-B | 3.250 | 1.750 | 1.250 | 0.060 | 3/4 | 1/4 | 1 1/4 | 1 3/4 | 5/8 | 1/8 | 1.750 | 2.500 | 1 1/4-12 |
| CNBE-112-B | 3.500 | 1.812 | 1.375 | 0.060 | 3/4 | 1/4 | 1 3/8 | 1 59/64 | 11/16 | 1/8 | 2.000 | 2.750 | 1 3/8-12 |
| CNBE-128-B | 4.000 | 2.000 | 2.000 | 0.060 | 3/4 | 1/4 | 1 1/2 | 2 9/32 | 3/4 | 1/8 | 2.250 | 3.500 | 1 1/2-12 |
