YRT-72-S

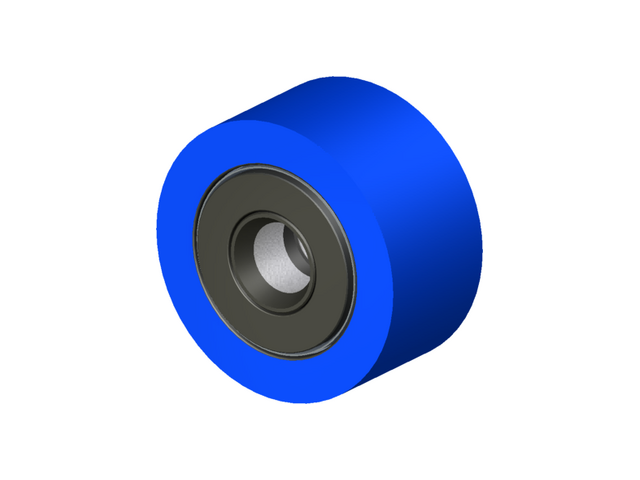

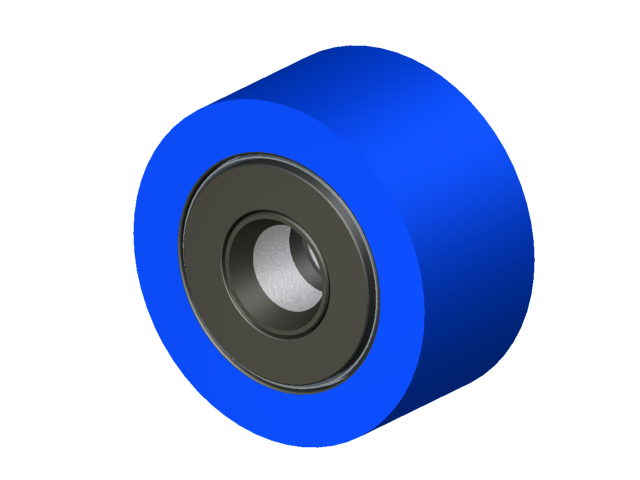

YRT-S -Standard Urethane Yolk Roller

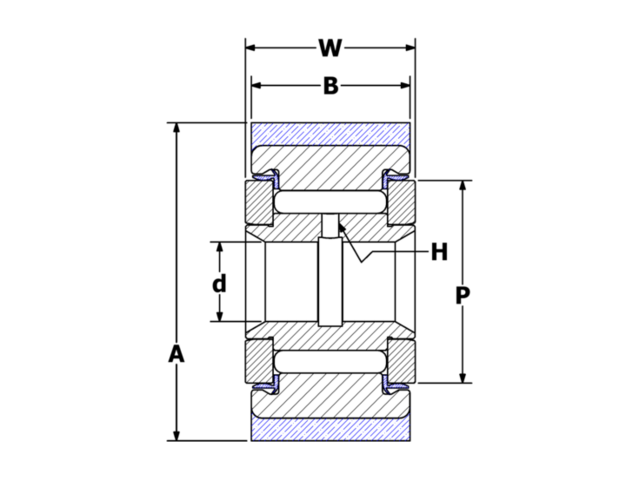

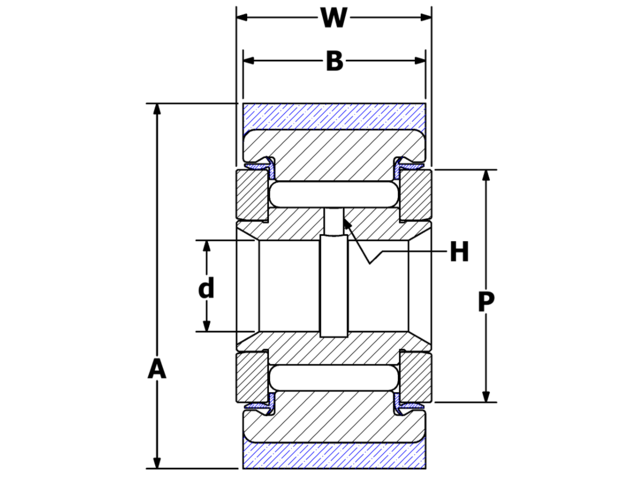

Specifications

ID YRT-72-S
Roller O.D. A 2.250
Roller Width B 1.250
Bore Diameter d 0.625
Overall Width W 1.313
Oil Hole Diameter H 3/32
Min. Boss Diameter P 1 1/2
Shaft Diameter (recommended) 0.6247

Downloads

YRT-72-S STP File

YRT-72-S IGES File

YRT-72-S PDF File

3D View
