YRT-64-S

YRT-S -Standard Urethane Yolk Roller

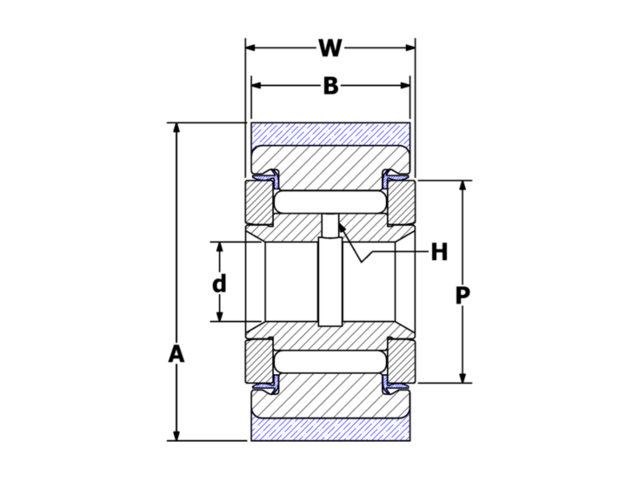

Specifications

ID YRT-64-S
Roller O.D. A 2.000
Roller Width B 1.000
Bore Diameter d 0.500
Overall Width W 1.063
Oil Hole Diameter H 3/32
Min. Boss Diameter P 1 1/4
Shaft Diameter (recommended) 0.4997

Downloads

YRT-64-S 2D CAD Drawing

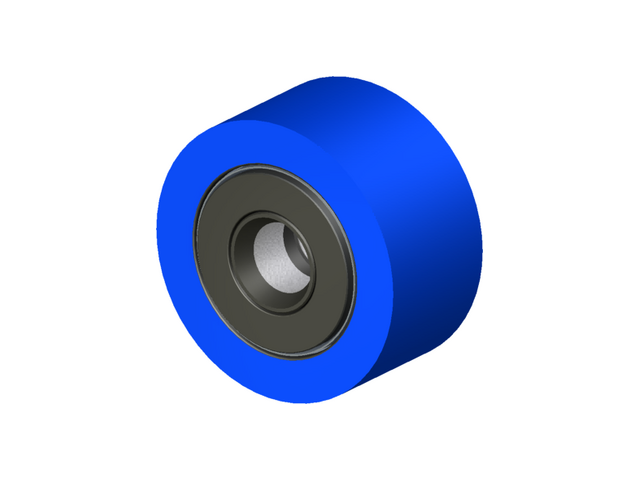

3D View
