YRT-56-S

YRT-S -Standard Urethane Yolk Roller

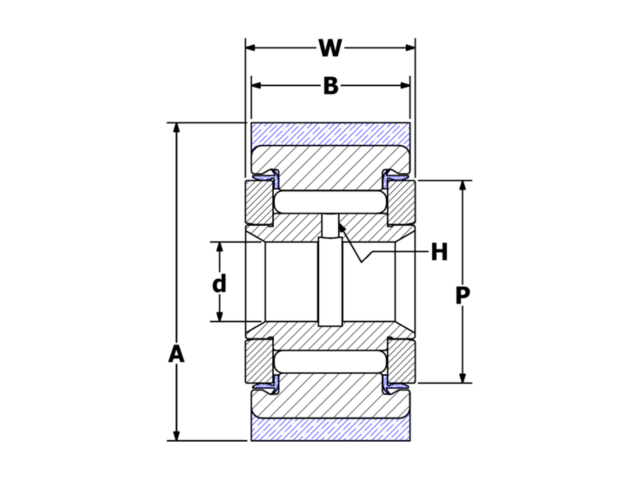

Specifications

ID YRT-56-S
Roller O.D. A 1.750
Roller Width B 0.875
Bore Diameter d 0.438
Overall Width W 0.938
Oil Hole Diameter H 3/32
Min. Boss Diameter P 1 1/8
Shaft Diameter (recommended) 0.4372

Downloads

YRT-56-S STP File

YRT-56-S IGES File

YRT-56-S PDF File

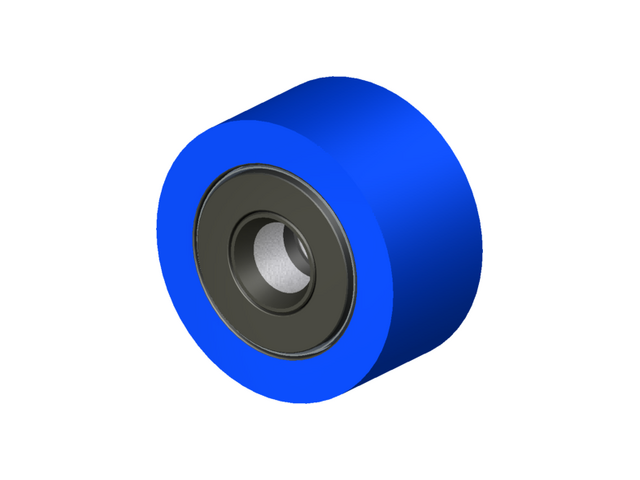

3D View
