YRT-40-S

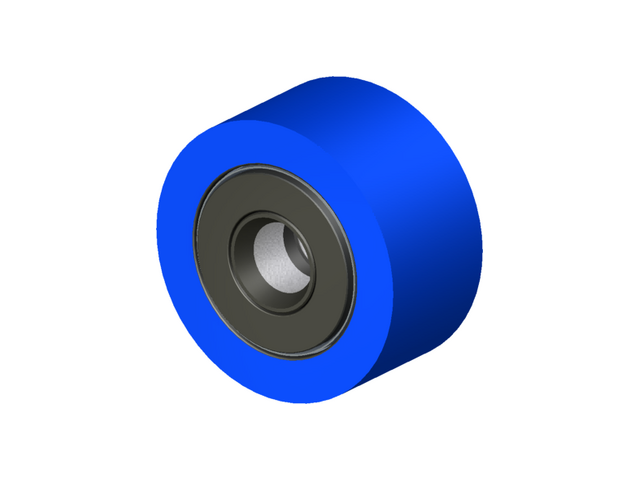

YRT-S -Standard Urethane Yolk Roller

PDF Download

YRT-40-S 2D CAD Drawing

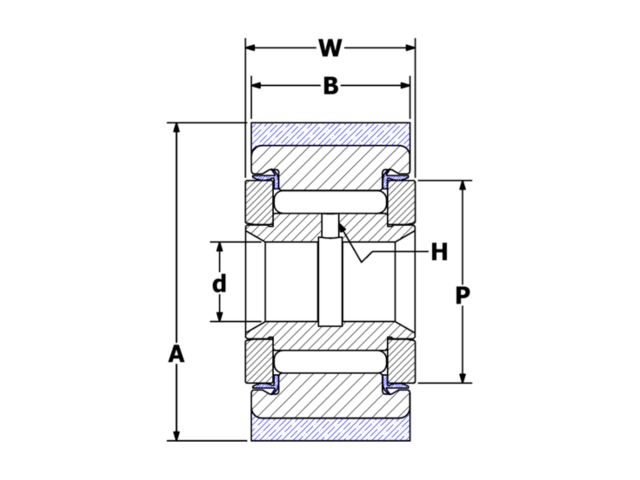

Specifications

ID YRT-40-S
Roller O.D. A 1.250
Roller Width B 0.625
Bore Diameter d 0.313
Overall Width W 0.688
Oil Hole Diameter H 3/32
Min. Boss Diameter P 23/32
Shaft Diameter (recommended) 0.3122

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
