YRT-32-S

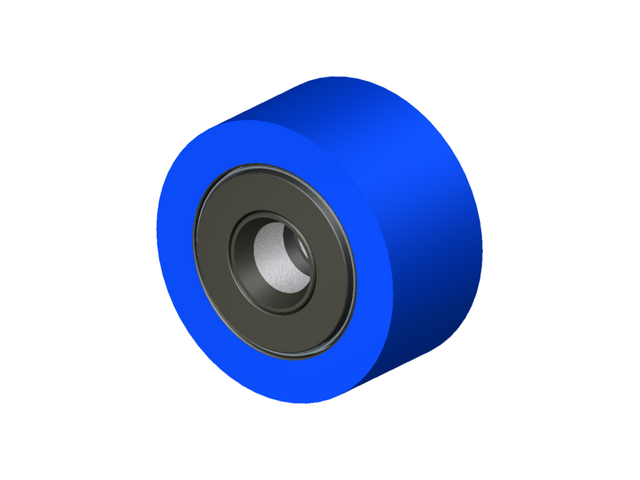

YRT-S -Standard Urethane Yolk Roller

PDF Download

YRT-32-S 2D CAD Drawing

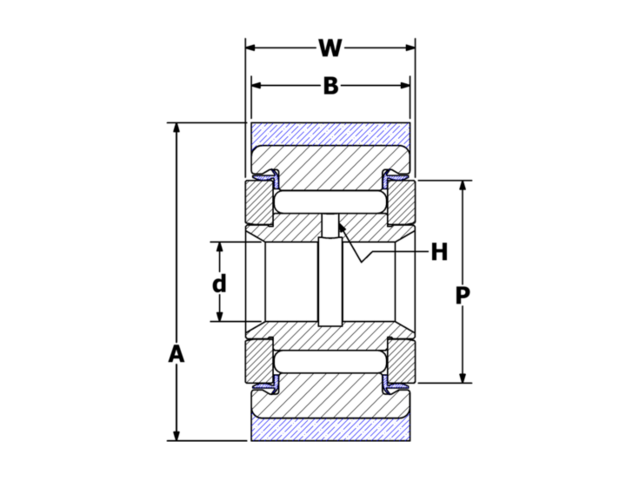

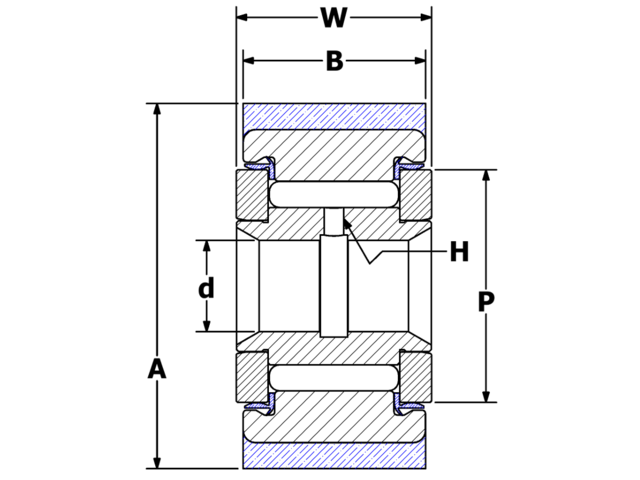

Specifications

ID YRT-32-S
Roller O.D. A 1.000
Roller Width B 0.500
Bore Diameter d 0.250
Overall Width W 0.563
Oil Hole Diameter H 3/32
Min. Boss Diameter P 5/8
Shaft Diameter (recommended) 0.2497

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
