YNB-96

YNB -Standard Cylindrical Unsealed Yolk Roller

Specifications

ID YNB-96

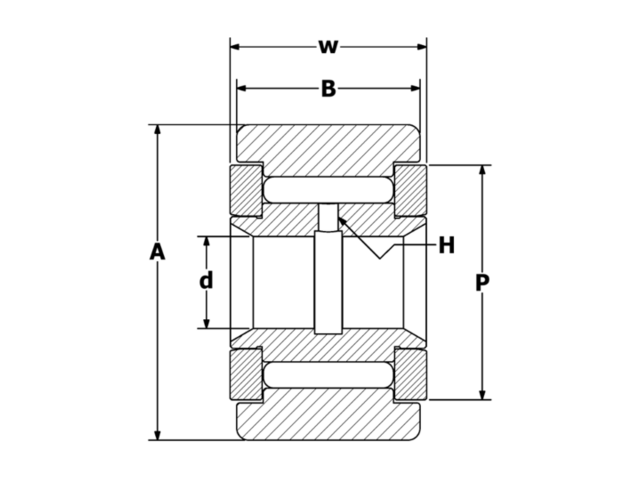

Roller O.D. A 3.000
Roller Width B 1.750
Bore Diameter d 1.000
Overall Width W 1.8125
Oil Hole Diameter H 1/8
Min. Boss Diameter P 1 3/4
Shaft Diameter(Ø) Push Fit 0.9994
Shaft Diameter(Ø) Drive Fit 1.0002
Shaft Diameter(Ø) Press Fit 1.0006
Max Static Capacity (lbf) 49,820
Basic Dynamic Rating (lbf) 15,720

Downloads

YNB-96 2D CAD Drawing

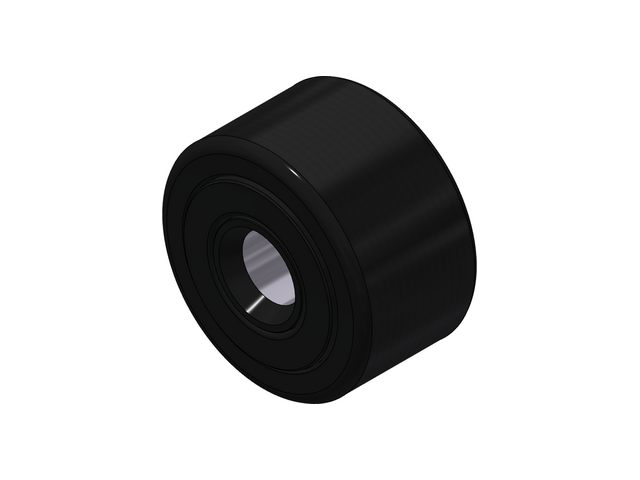

3D View
