YNB-72

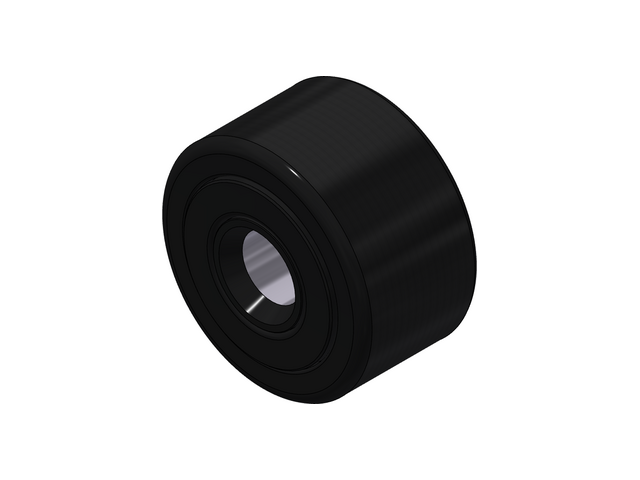

YNB -Standard Cylindrical Unsealed Yolk Roller

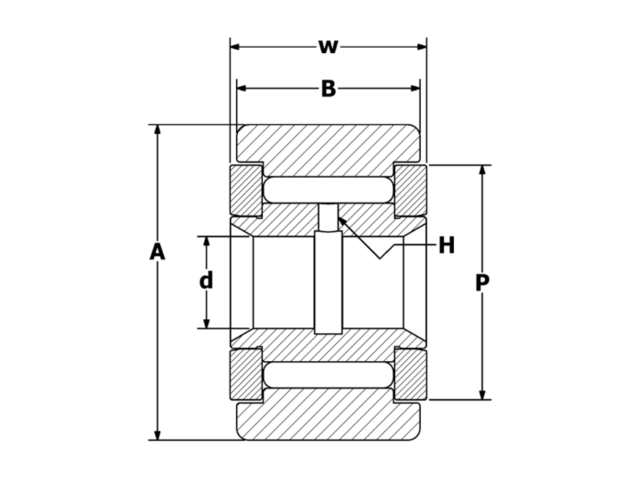

Specifications

ID YNB-72
Roller O.D. A 2.250
Roller Width B 1.250
Bore Diameter d 0.625
Overall Width W 1.3125
Oil Hole Diameter H 1/8
Min. Boss Diameter P 1 13/64
Shaft Diameter(Ø) Push Fit 0.6245
Shaft Diameter(Ø) Drive Fit 0.6251
Shaft Diameter(Ø) Press Fit 0.6255
Max Static Capacity (lbf) 21,140
Basic Dynamic Rating (lbf) 8,090
