YNB-60

YNB -Standard Cylindrical Unsealed Yolk Roller

Specifications

ID YNB-60
Roller O.D. A 1.875
Roller Width B 1.000
Bore Diameter d 0.500
Overall Width W 1.0625
Oil Hole Diameter H 3/32
Min. Boss Diameter P 1 3/64
Shaft Diameter(Ø) Push Fit 0.4995
Shaft Diameter(Ø) Drive Fit 0.5001
Shaft Diameter(Ø) Press Fit 0.5005
Max Static Capacity (lbf) 15,840
Basic Dynamic Rating (lbf) 6,385

Downloads

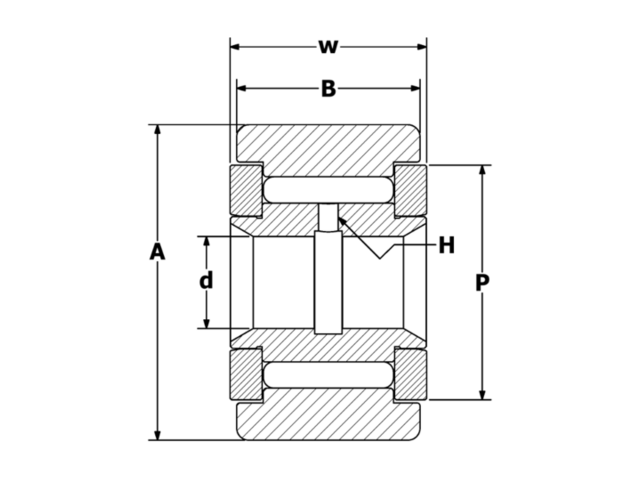

YNB-60 2D CAD Drawing

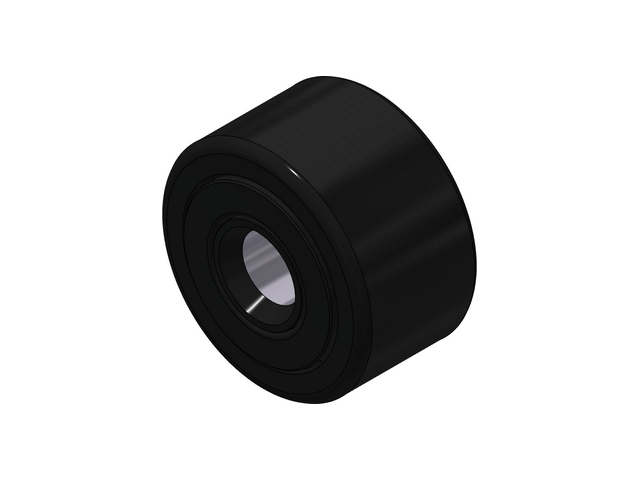

3D View
