YNB-44-S

YNB-S -Standard Cylindrical Sealed Yolk Roller

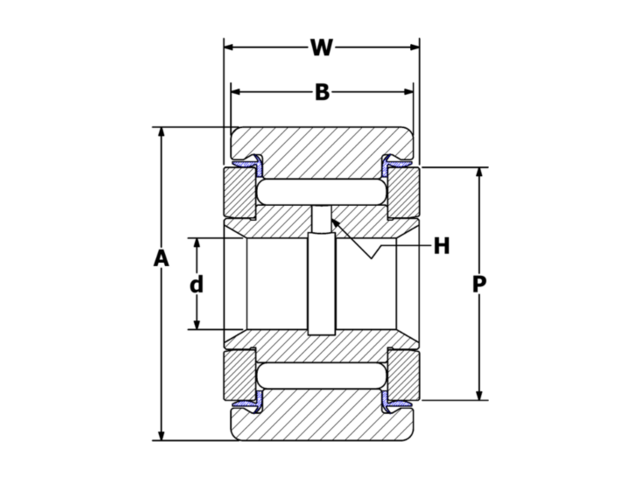

Specifications

ID YNB-44-S
Roller O.D. A 1.375
Roller Width B 0.750
Bore Diameter d 0.375
Overall Width W 0.8125
Oil Hole Diameter H 3/32
Min. Boss Diameter P 49/64
Shaft Diameter(Ø) Push Fit 0.3745
Shaft Diameter(Ø) Drive Fit 0.3751
Shaft Diameter(Ø) Press Fit 0.3753
Max Static Capacity (lbf) 8,500
Basic Dynamic Rating (lbf) 3,930
Limiting Speed (RPM) 2,800

Downloads

YNB-44-S 2D CAD Drawing

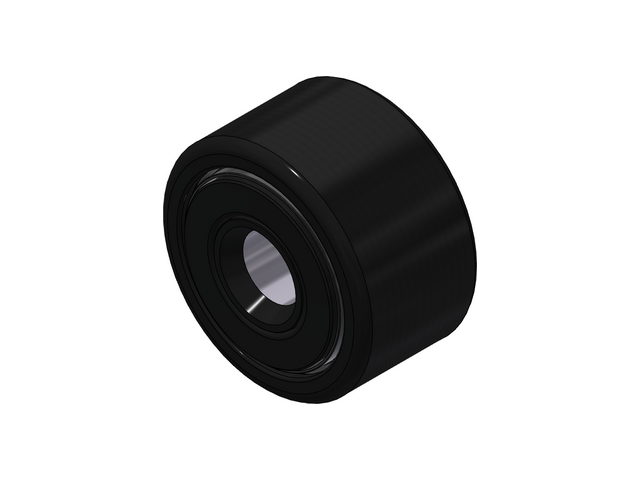

3D View
