YNB-44

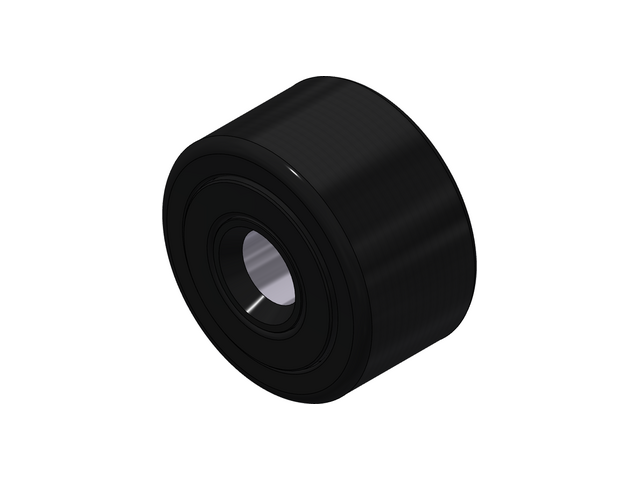

YNB -Standard Cylindrical Unsealed Yolk Roller

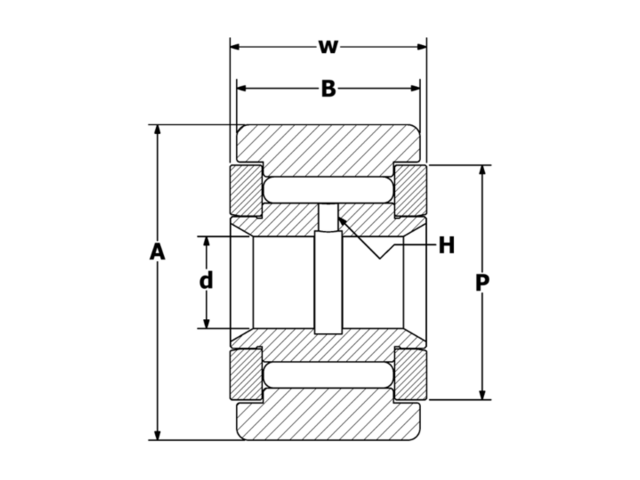

Specifications

ID YNB-44
Roller O.D. A 1.375
Roller Width B 0.750
Bore Diameter d 0.375
Overall Width W 0.8125
Oil Hole Diameter H 3/32
Min. Boss Diameter P 49/64
Shaft Diameter(Ø) Push Fit 0.3745
Shaft Diameter(Ø) Drive Fit 0.3751
Shaft Diameter(Ø) Press Fit 0.3753
Max Static Capacity (lbf) 8,500
Basic Dynamic Rating (lbf) 3,930

Downloads

YNB-44 STP File

YNB-44 IGES File

YNB-44 PDF File

3D View
