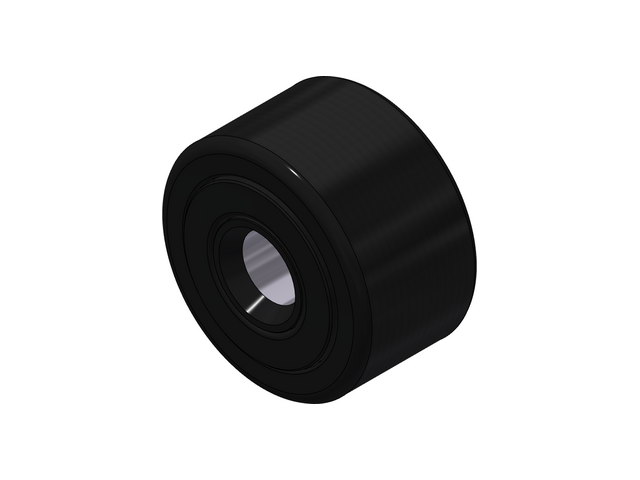

YNB-36

YNB -Standard Cylindrical Unsealed Yolk Roller

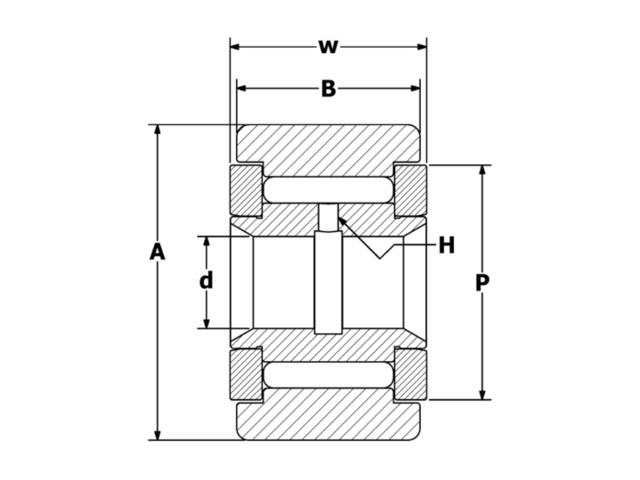

Specifications

ID YNB-36
Roller O.D. A 1.125
Roller Width B 0.625
Bore Diameter d 0.313
Overall Width W 0.6875
Oil Hole Diameter H 3/32
Min. Boss Diameter P 41/64
Shaft Diameter(Ø) Push Fit 0.3120
Shaft Diameter(Ø) Drive Fit 0.3126
Shaft Diameter(Ø) Press Fit 0.3128
Max Static Capacity (lbf) 6,120
Basic Dynamic Rating (lbf) 2,225
