YNB-28

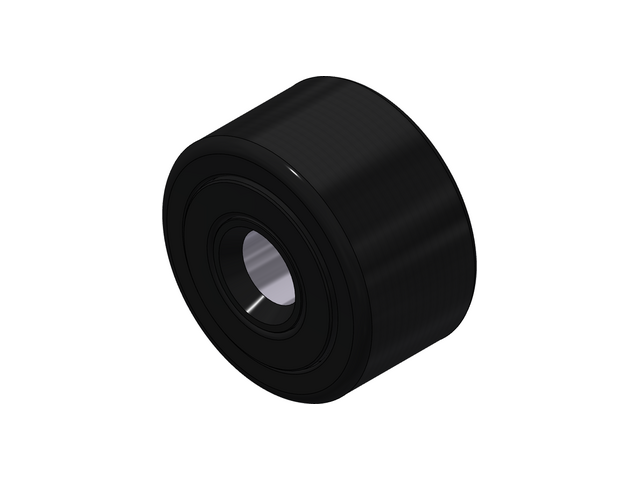

YNB -Standard Cylindrical Unsealed Yolk Roller

PDF Download

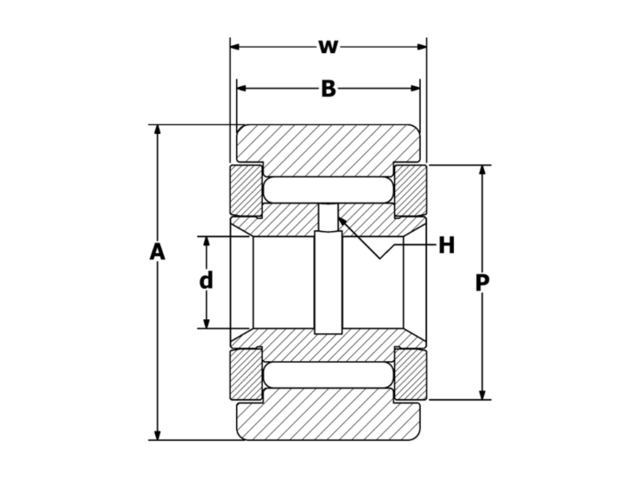

YNB-28 2D CAD Drawing

Specifications

ID YNB-28
Roller O.D. A 0.875
Roller Width B 0.500
Bore Diameter d 0.250
Overall Width W 0.5625
Oil Hole Diameter H 3/32
Min. Boss Diameter P 1/2
Shaft Diameter(Ø) Push Fit 0.2495
Shaft Diameter(Ø) Drive Fit 0.2501
Shaft Diameter(Ø) Press Fit 0.2503
Max Static Capacity (lbf) 4,130
Basic Dynamic Rating (lbf) 1,660
Limiting Speed (RPM) 5,400

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
