YNB-160-S

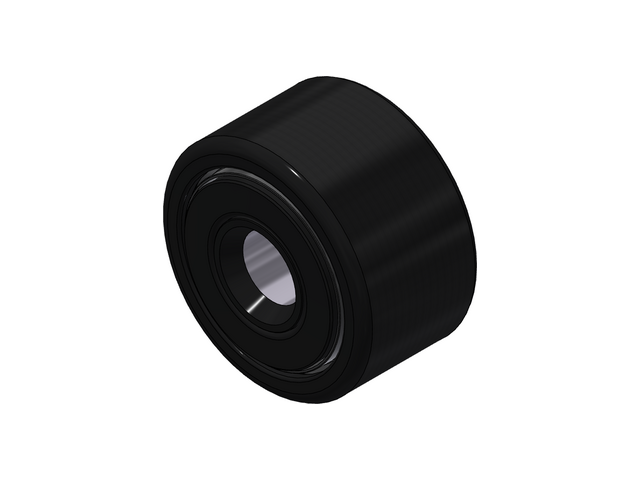

YNB-S -Standard Cylindrical Sealed Yolk Roller

Please call 616-842-8760 for price and availability

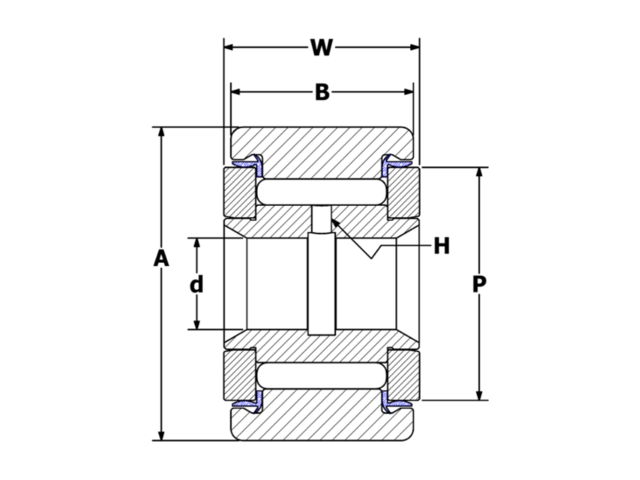

Specifications

ID YNB-160-S
Roller O.D. A 5.000
Roller Width B 2.750
Bore Diameter d 1.750
Overall Width W 2.8750
Oil Hole Diameter H 3/16
Min. Boss Diameter P 2 7/8
Shaft Diameter(Ø) Push Fit 1.7494
Shaft Diameter(Ø) Drive Fit 1.7502
Shaft Diameter(Ø) Press Fit 1.7506
Max Static Capacity (lbf) 135,900
Basic Dynamic Rating (lbf) 46,575

Downloads

YNB-160-S 2D CAD Drawing

3D View
