YNB-112

YNB -Standard Cylindrical Unsealed Yolk Roller

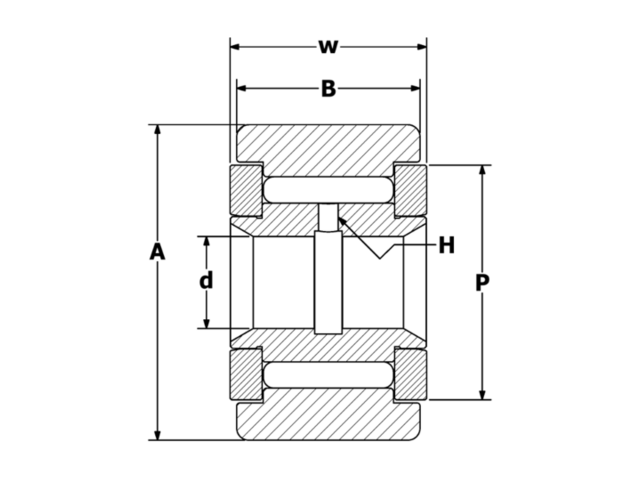

Specifications

ID YNB-112
Roller O.D. A 3.500
Roller Width B 2.000
Bore Diameter d 1.125
Overall Width W 2.0625
Oil Hole Diameter H 1/8
Min. Boss Diameter P 1 59/64
Shaft Diameter(Ø) Push Fit 1.1244
Shaft Diameter(Ø) Drive Fit 1.1252
Shaft Diameter(Ø) Press Fit 1.1256
Max Static Capacity (lbf) 63,250
Basic Dynamic Rating (lbf) 22,800

Downloads

YNB-112 STP File

YNB-112 IGES File

YNB-112 PDF File
