YDR-400-S

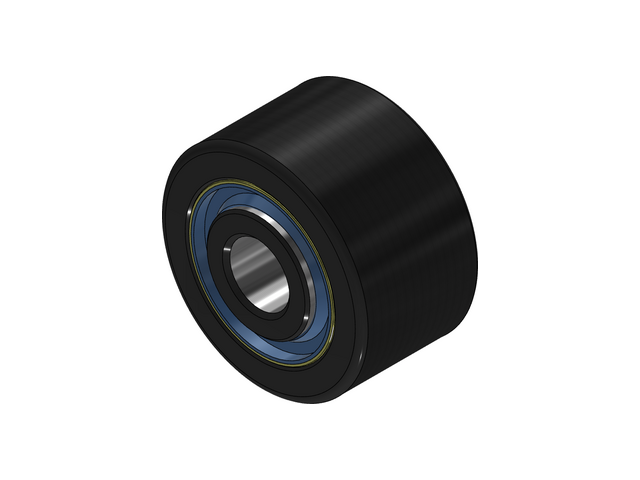

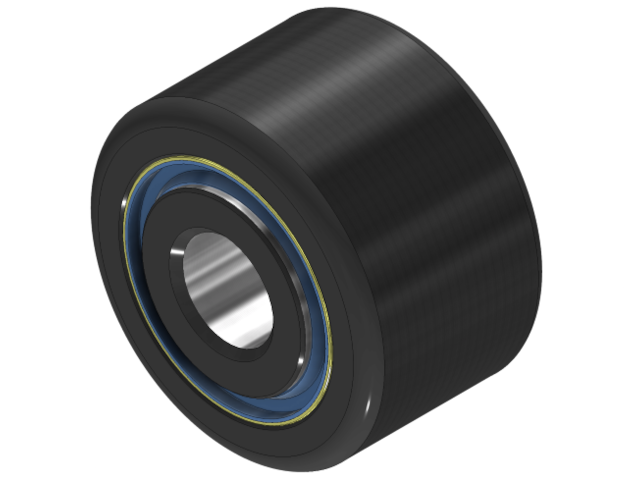

YDR-S -Heavy Cylindrical Roller Bearings, Yoke Roller

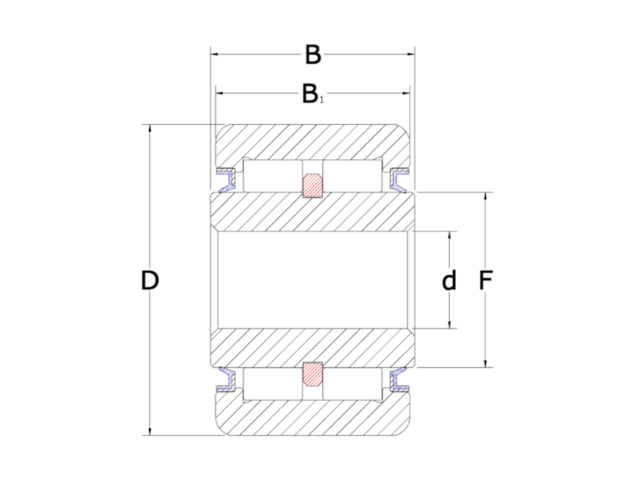

2D Drawings

YDR-400-S 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID YDR-400-S
Roller O.D. A 4.000
Roller Width B 2.250
Bore Diameter d 1.2500
Overall Width W 2.3125
Shoulder Diameter P 2 1/2
Mounting Shaft Diameter(Ø) Transition Fit 1.2495
Mounting Shaft Diameter(Ø) Press Fit 1.2505
Basic Dynamic Rating (lbf) 68,000
Max Static Capacity (lbf) 45,600
Limiting Speed (RPM) 2,600

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
