XDY-40-S

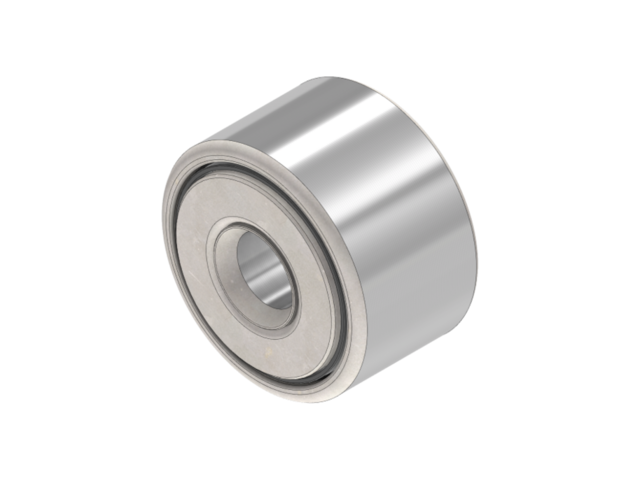

XDY-S -XD Cylindrical Sealed Yoke Roller

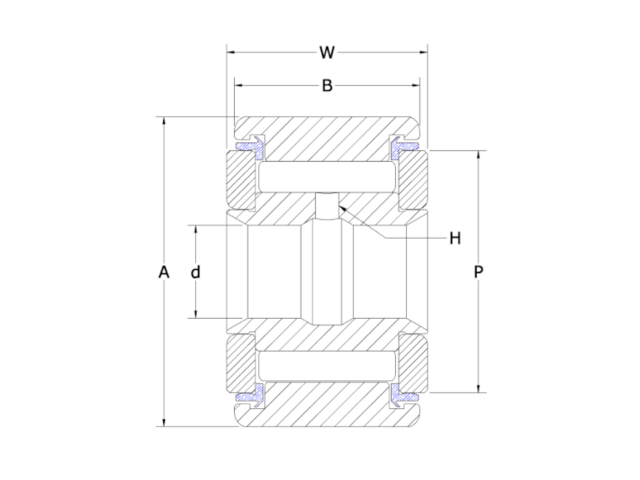

2D Drawings

XDY-40-S 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID XDY-40-S
Roller O.D. A 1.250
Roller Width B 0.750
Bore Diameter d 0.375
Overall Width W 0.8125
Oil Hole Diameter H 3/32
Min. Boss Diameter P 49/64
Shaft Diameter(Ø) Push Fit 0.3745
Shaft Diameter(Ø) Drive Fit 0.3751
Shaft Diameter(Ø) Press Fit 0.3753
Max Static Capacity (lbf) 8,500
Basic Dynamic Rating (lbf) 3,930
Limiting Speed (RPM) 3,100

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
