XDY-24-S

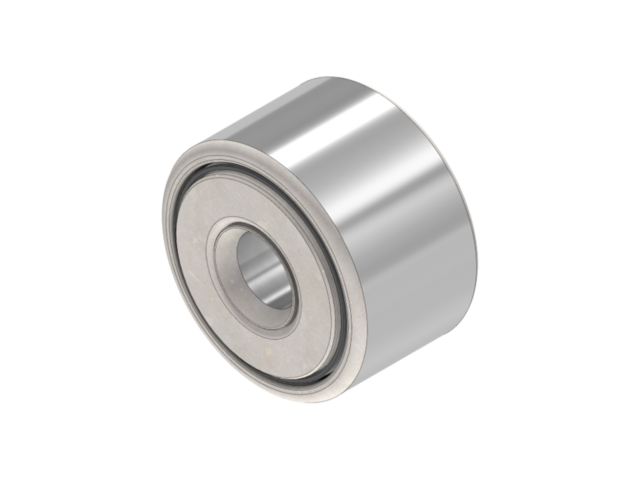

XDY-S -XD Cylindrical Sealed Yoke Roller

2D Drawings

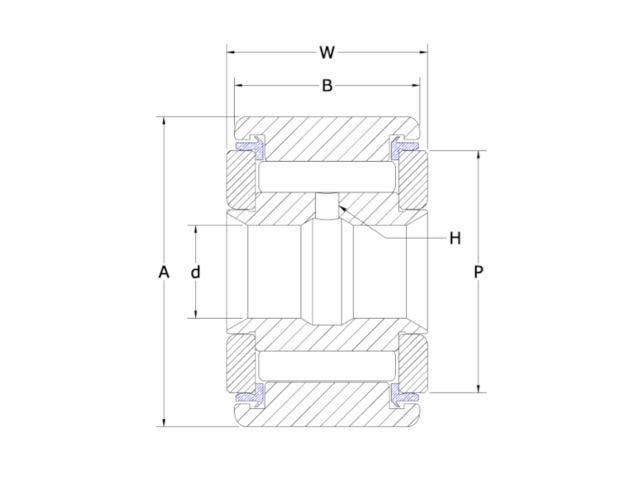

XDY-24-S 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID XDY-24-S
Roller O.D. A 0.750
Roller Width B 0.500
Bore Diameter d 0.250
Overall Width W 0.5625
Oil Hole Diameter H 3/32
Min. Boss Diameter P 1/2
Shaft Diameter(Ø) Push Fit 0.2495
Shaft Diameter(Ø) Drive Fit 0.2501
Shaft Diameter(Ø) Press Fit 0.2503
Max Static Capacity (lbf) 4,130
Basic Dynamic Rating (lbf) 1,660
Limiting Speed (RPM) 6,400

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
