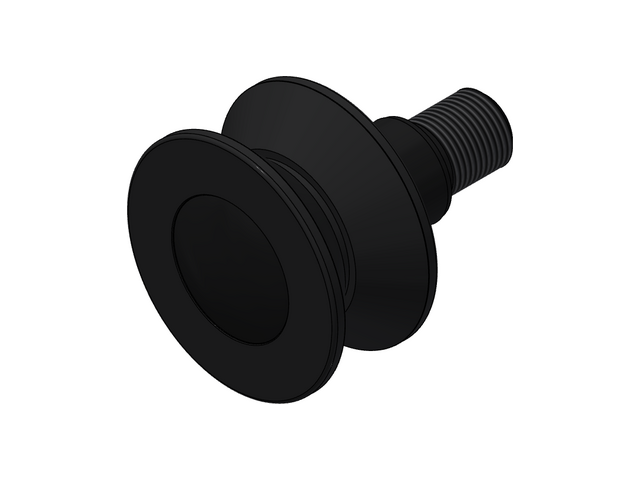

VHRE-750-A

VHRE-A -V-Groove High Roller Eccentric

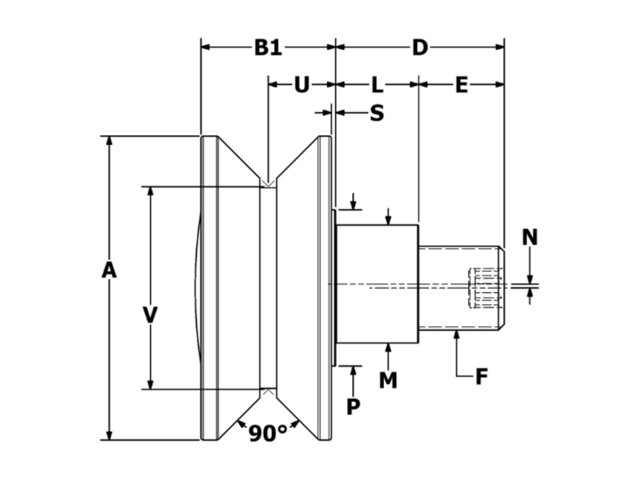

2D Drawings

VHRE-750-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID VHRE-750-A
Roller O.D. A 7.500
V-Groove Point V 6.000
Roller B1 3.000
V-Groove Center U 1.500
Stud Length D 5.500
Thread Length E 2.625
Thread Class 2A F 2 1/2-12
Eccentric Sleeve Length L 2.875
Eccentric Sleeve Diameter M 3.125
Eccentric Offset N 0.060
Endplate Diameter P 3.625
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 35,840
Dynamic Thrust Load (lbf) 33,100
Max Static Capacity (lbf) 56,400
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
