VHRE-450-A

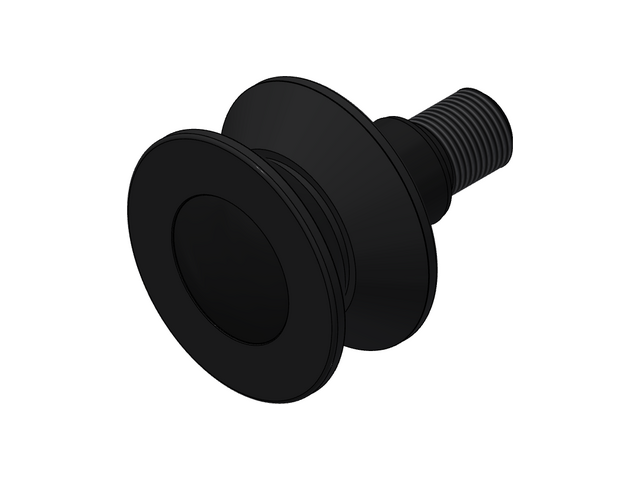

VHRE-A -V-Groove High Roller Eccentric

2D Drawings

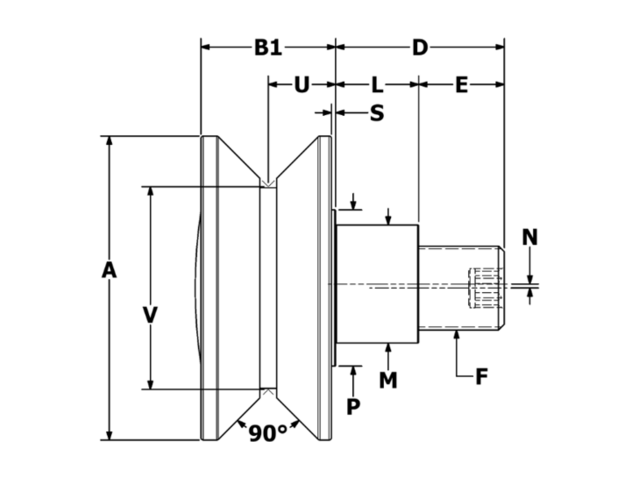

VHRE-450-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID VHRE-450-A
Roller O.D. A 4.500
V-Groove Point V 3.000
Roller B1 2.000
V-Groove Center U 1.000
Stud Length D 2.500
Thread Length E 1.270
Thread Class 2A F 1 1/4-12
Eccentric Sleeve Length L 1.230
Eccentric Sleeve Diameter M 1.750
Eccentric Offset N 0.060
Endplate Diameter P 2.312
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 14,270
Dynamic Thrust Load (lbf) 12,000
Max Static Capacity (lbf) 20,000
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
