VHRE-350-A
VHRE-A -V-Groove High Roller Eccentric

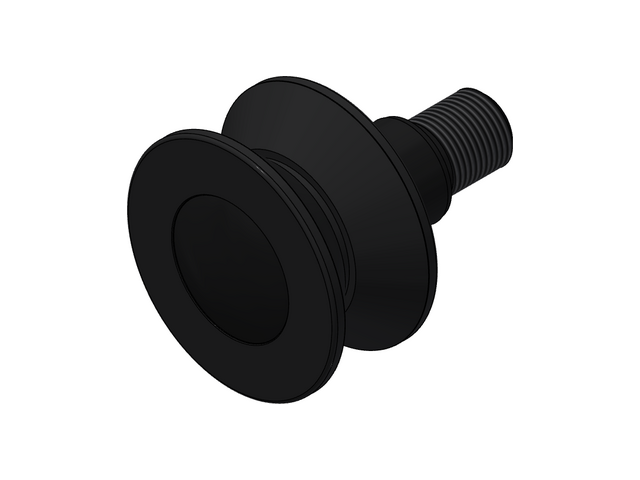

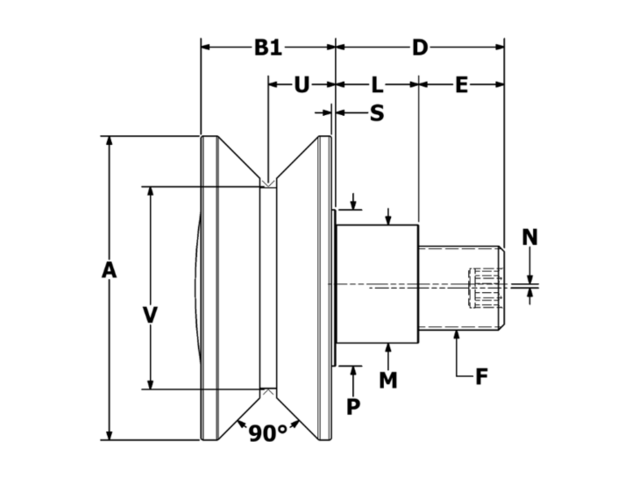

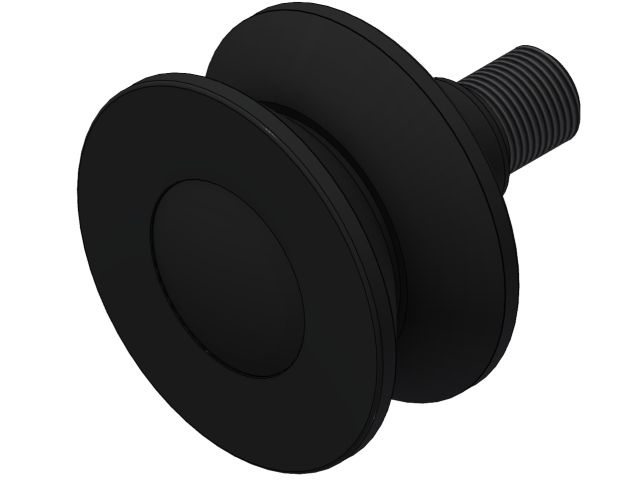

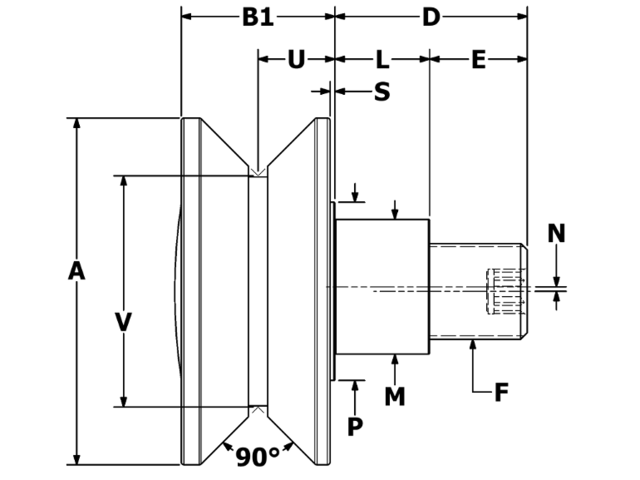

2D Drawings
Specifications
| ID | VHRE-350-A | |
|---|---|---|
| Roller O.D. | A | 3.500 |
| V-Groove Point | V | 2.250 |
| Roller | B1 | 1.688 |
| V-Groove Center | U | 0.875 |
| Stud Length | D | 2.000 |
| Thread Length | E | 1.020 |
| Thread Class 2A | F | 7/8-14 |
| Eccentric Sleeve Length | L | 0.980 |
| Eccentric Sleeve Diameter | M | 1.187 |
| Eccentric Offset | N | 0.060 |
| Endplate Diameter | P | 1.500 |
| Endplate Stickout | S | 0.062 |
| Basic Dynamic Rating (lbf) | 5,190 | |
| Dynamic Thrust Load (lbf) | 1,400 | |
| Max Static Capacity (lbf) | 2,270 | |
| Ball(BB) or Tapered(TRB) Roller Bearing | TRB |
**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
