VHRE-250-A

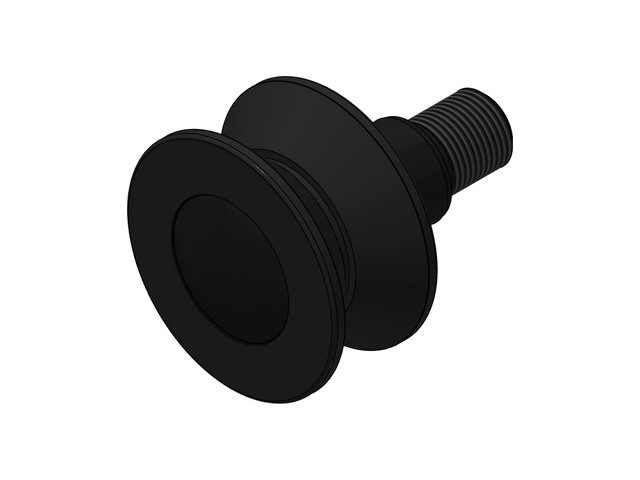

VHRE-A -V-Groove High Roller Eccentric

2D Drawings

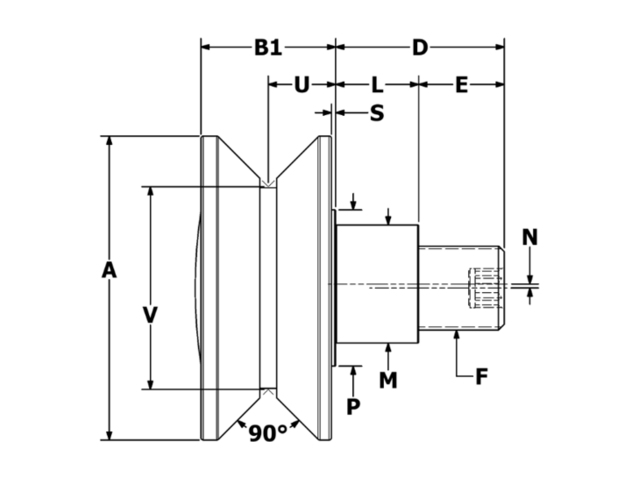

VHRE-250-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID VHRE-250-A
Roller O.D. A 2.500
V-Groove Point V 1.500
Roller B1 1.313
V-Groove Center U 0.688
Stud Length D 1.750
Thread Length E 0.895
Thread Class 2A F 3/4-16
Eccentric Sleeve Length L 0.855
Eccentric Sleeve Diameter M 1.000
Eccentric Offset N 0.030
Endplate Diameter P 1.375
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 2,760
Dynamic Thrust Load (lbf) 680
Max Static Capacity (lbf) 1,100
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
