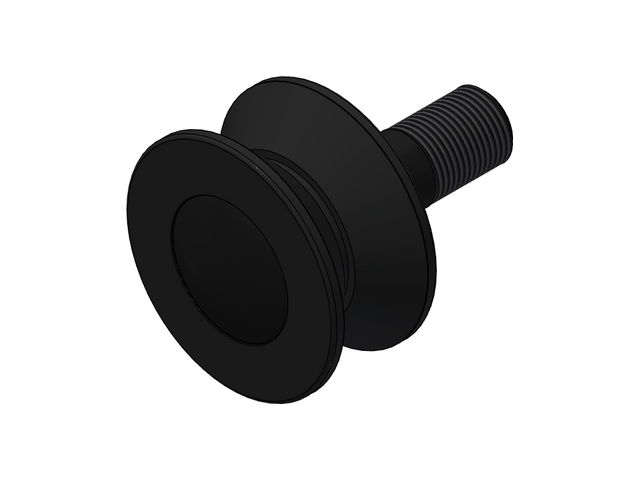

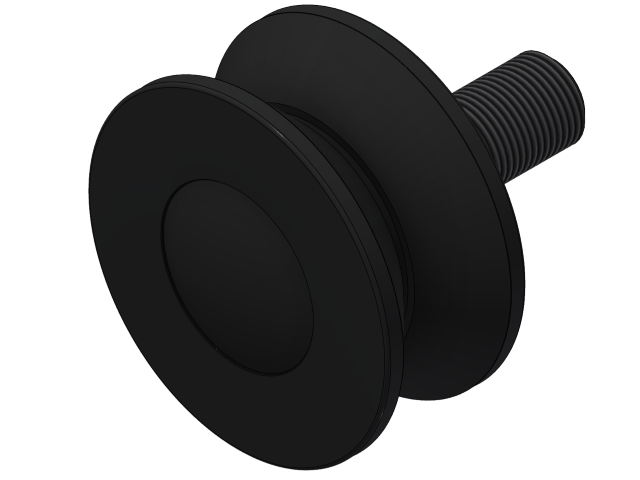

VHR-450-A

VHR-A -V-Groove High Roller

Please call 616-842-8760 for price and availability

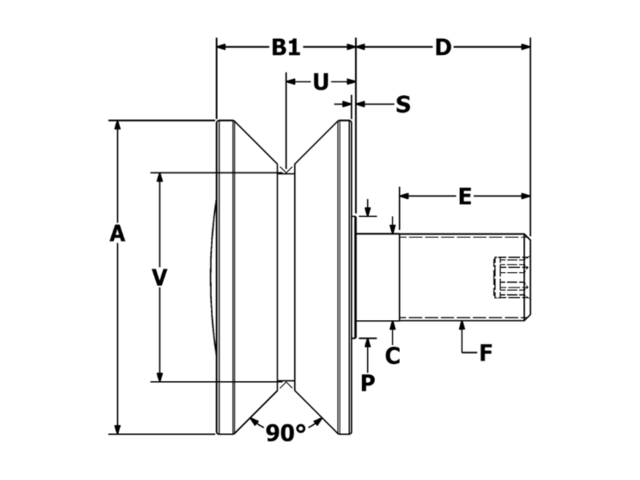

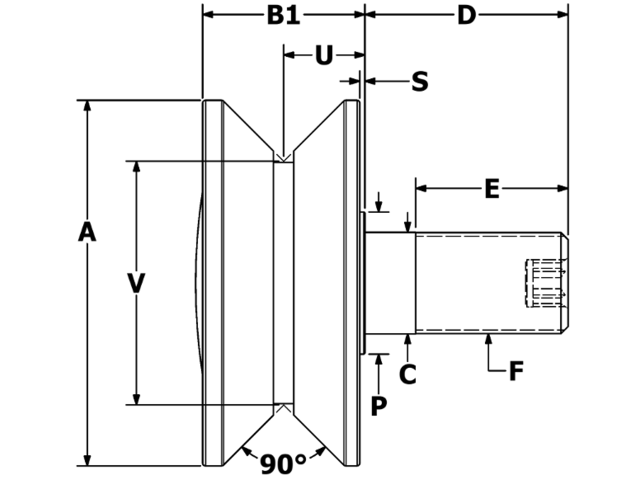

Specifications

ID VHR-450-A
Roller O.D. A 4.500
V-Groove Point V 3.000
Roller B1 2.000
V-Groove Center U 1.000
Stud Diameter C 1.250
Stud Length D 2.500
M.E.T. E 1 3/4
Thread Class 2A F 1 1/4-12
Endplate Diameter P 1.750
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 14,270
Dynamic Thrust Load (lbf) 12,000
Max Static Capacity (lbf) 20,000
Ball(BB) or Tapered(TRB) Roller Bearing TRB

Downloads

VHR-450-A 2D CAD Drawing

3D View
