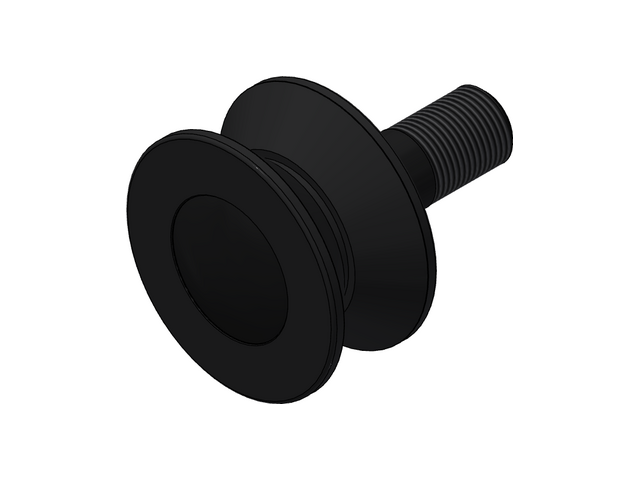

VHR-A -V-Groove High Roller

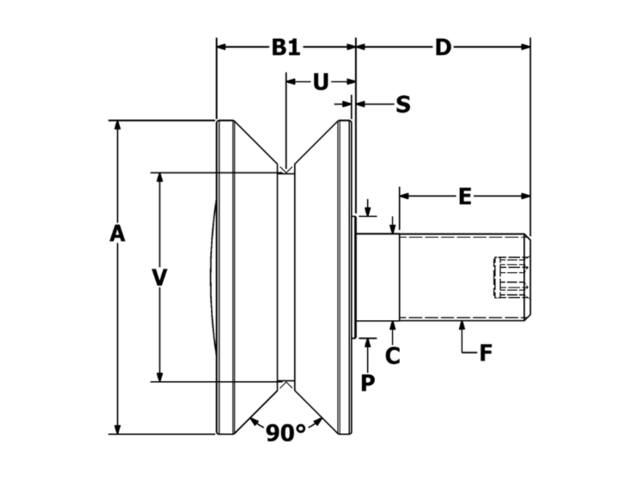

2D Drawings

VHR-150-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information


ID VHR-150-A
Roller O.D. A 1.500
V-Groove Point V 1.125
Roller B1 0.781
V-Groove Center U 0.391
Stud Diameter C 0.437
Stud Length D 1.000
M.E.T. E 1/2
Thread Class 2A F 7/16-20
Endplate Diameter P 0.500
Endplate Stickout S 0.031
Basic Dynamic Rating (lbf) 630
Dynamic Thrust Load (lbf) 140
Max Static Capacity (lbf) 230
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
